Key features:

• Suitable for hollow shaft mounting, optimizing space utilization
• Compact design facilitates quick and effortless installation

Specifications:

• Maximum torque: Can withstand brief overloads of up to 1.5 times the rated torque
• Temperature range: Operates efficiently in temperatures ranging from -30 °C to +100 °C (-22 °F to +212 °F)

Design and materials:

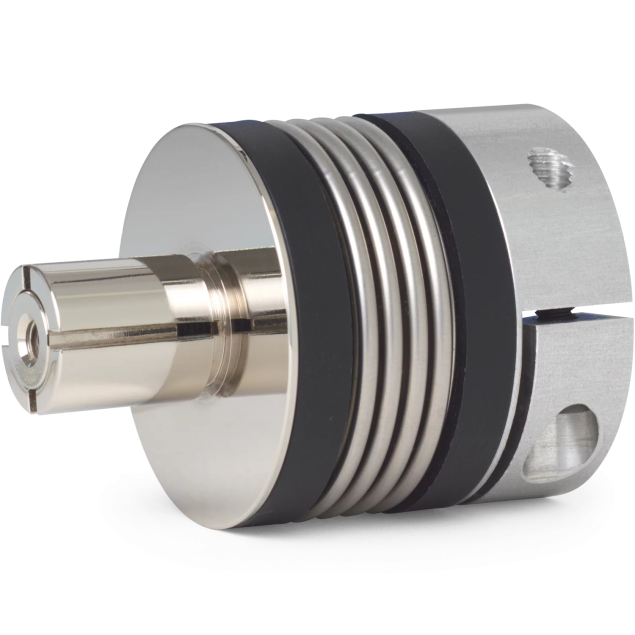

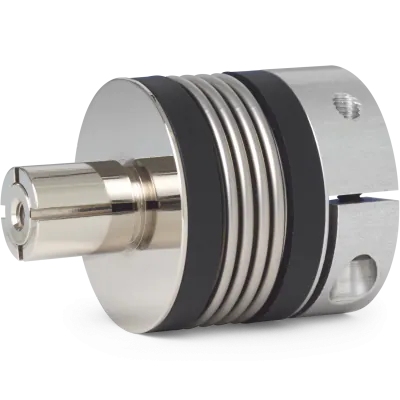

• The coupling features one clamping hub on one end and an expanding shaft on the other end, ensuring a secure and reliable connection.
• The bellows are crafted from high-grade stainless steel, offering exceptional durability and resistance to corrosion.
• The hubs are made from stainless steel, providing strength and reliability.
• The expanding mandrel and inner cone are constructed from steel, enhancing the overall robustness of the coupling.

Bore specifications:

• Bore D1: Ø16mm H7
• Bore D2: Ø19mm H7
