Key features:

• High clamping pressure: The coupling's conical clamping hubs exert a high clamping pressure, ensuring a secure and reliable connection between the input and output shafts.
• High torque version: The BK3 Size 500 is engineered to handle high torque levels, making it suitable for heavy-duty applications that require substantial power transmission.
• Compact design: Its compact design allows for easy integration into space-constrained systems, making it ideal for applications where size is a critical factor.

Specifications:

• Temperature range: The coupling is designed to operate in a temperature range of -30 °C to +100 °C (-22 °F to +212 °F), ensuring reliable performance even in extreme conditions.

Design and materials:

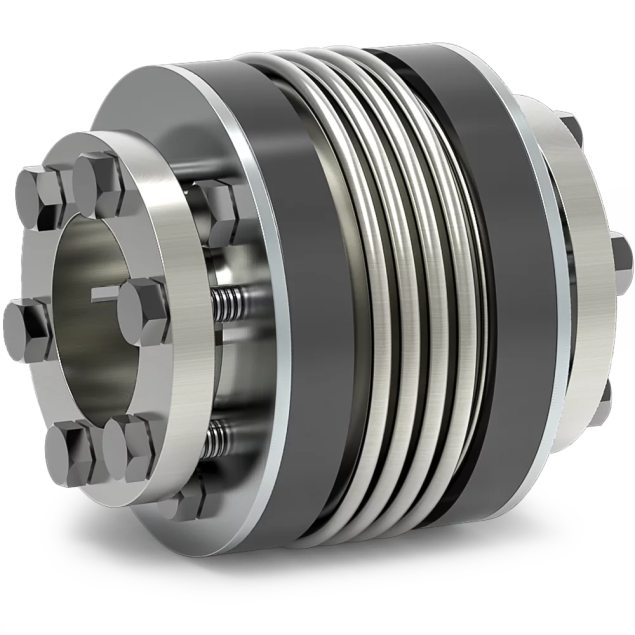

• The coupling features two conical clamping hubs concentrically mounted to a flexible bellows, providing excellent flexibility and compensating for misalignments.
• The bellows are constructed from high-grade stainless steel, offering exceptional durability, resistance to corrosion, and high torsional stiffness.
• The hubs are made from steel, ensuring strength and durability to withstand demanding operational conditions.

Bore specifications:

• Bore D1: Ø40mm H7
• Bore D2: Ø50mm H7
