Key features:

• High clamping pressure: The conical clamping hubs of the BK3 coupling ensure a secure and reliable connection, providing high clamping pressure to prevent slippage and maximize torque transmission.
• High torque version: This coupling is specifically engineered to handle high torque requirements, making it suitable for demanding applications that involve heavy loads and challenging operating conditions.
• Compact design: The BK3 coupling boasts a compact design that allows for efficient use of space, making it ideal for applications with limited installation area.

Specifications:

• Temperature range: The coupling can operate within a wide temperature range, from -30 °C to +100 °C (-22 °F to +212 °F), enabling its usage in diverse environments.

Design and materials:

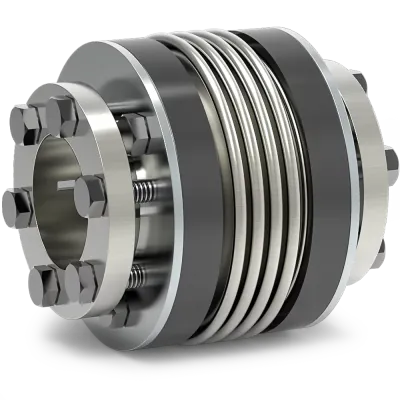

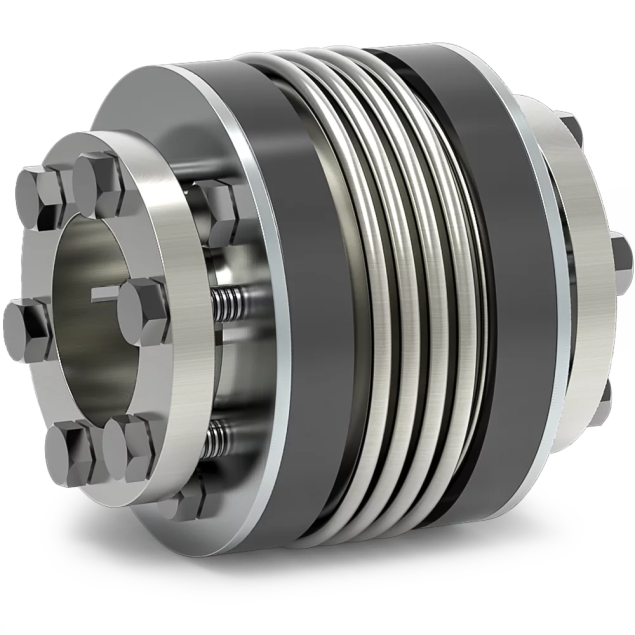

• The coupling features two conical clamping hubs that are concentrically mounted to a flexible bellows, providing excellent flexibility and compensating for angular, axial, and radial misalignments.
• The bellows are constructed from stainless steel, ensuring corrosion resistance and longevity.
• The hubs are made from sturdy steel, offering strength and reliability.

Bore specifications:

• Bore D1: Ø30mm H7
• Bore D2: Ø42mm H7
