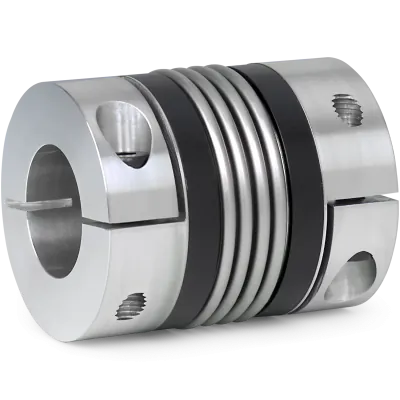

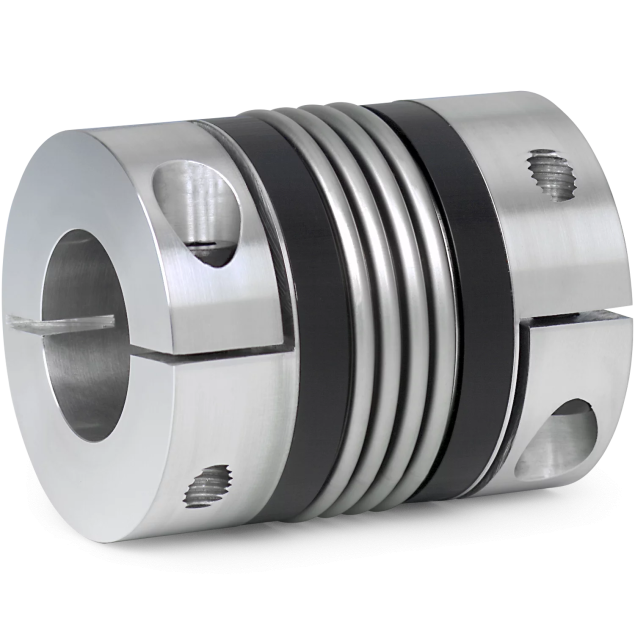

BK2 30 69 bellow coupling, stainless steel and steel
HV3020011086The BK2 size 30 bellow coupling with simple flange mounting is a high-quality coupling designed to provide reliable and efficient power transmission in various industrial applications. With its features, specifications, and robust design, this coupling is an choice for demanding mechanical systems.
Specifications
Product description
Downloads
€263.53
In stock
Expected shipment: 05-11-2024
More Information
Material
Stainless steel and aluminium
Length (mm)
69
Max. moment (Nm)
30
Coupling size
30
Bore max.
Ø30mm H7
Bore min.
Ø10mm H7
Product type
Bellow coupling
Description
Key Features:
- Easy mounting: The BK2 Size 30 coupling offers a hassle-free installation process, saving time and effort during setup.
- Optional light weight: For applications that require reduced weight, this coupling offers an optional lightweight configuration, allowing for improved efficiency.
- Low moment of inertia: The optional low moment of inertia feature enhances the responsiveness of the coupling, making it suitable for systems with rapid acceleration and deceleration requirements.
Specifications:
- Temperature range: With an impressive temperature range of -30 °C to +100 °C (-22 °F to +212 °F), the BK2 Size 30 coupling performs reliably in both extreme cold and hot conditions.
Design and Materials:
- Features two clamping hubs that are concentrically mounted to a flexible bellows.
- Torque overload tolerance: The coupling is designed to handle brief overloads of up to 1.5 times its rated torque, ensuring exceptional durability and reliability.
- The high-quality stainless steel bellows ensures exceptional flexibility.
- The aluminum hubs provide strength and lightweight characteristics.
