BJ-Gear TENV90S-6 IP69K, AC-Motor, B14, 0.75KW, 940RPM, Stainless steel

HV82SPMEKH6JTENN4KSA1-N---NNN

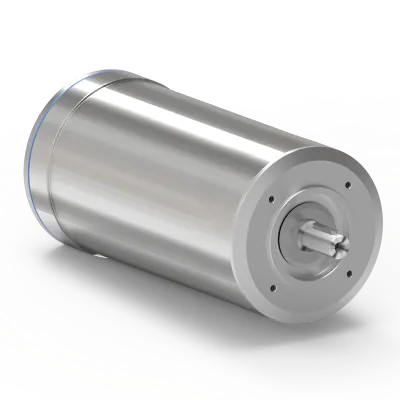

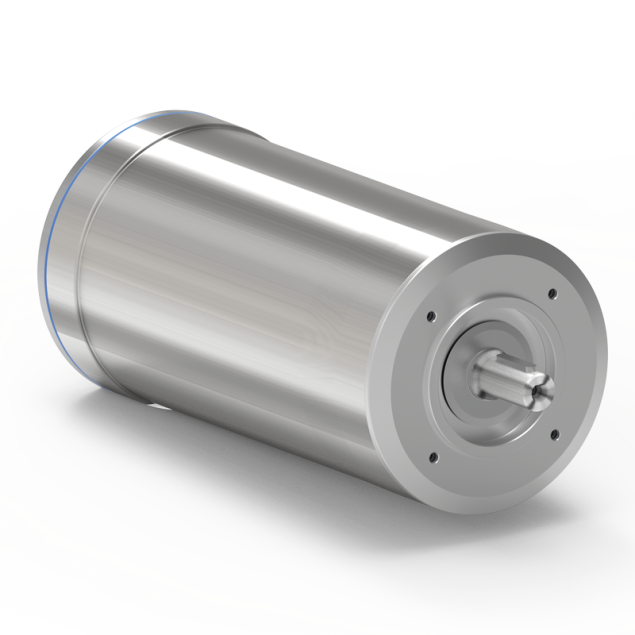

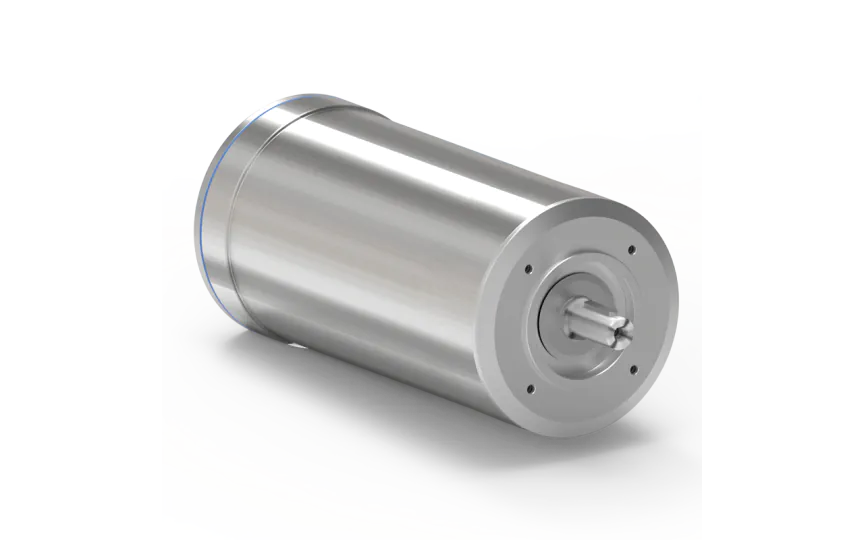

The Clean Geartech TENV90S-6 is a stainless steel AC motor optimized for hygienic low-speed applications in washdown environments. Rated at 0.75 kW and running at 940 RPM (6-pole, 50 Hz), it is built on an IEC 90S frame and designed for 230/400 V supply systems.

Its TENV (Totally Enclosed Non-Ventilated) enclosure ensures there is no internal airflow, which minimizes contamination risk and protects internal components. The corrosion-resistant housing is certified to IP69K, offering full protection against high-pressure, high-temperature cleaning – ideal for food, dairy, pharmaceutical, and cleanroom industries.

The B14 flange mounting supports compact, face-mounted configurations, making the motor particularly suitable for hygienic gearboxes and machinery with limited space. With insulation class F and sealed bearings, it provides reliable, low-maintenance performance in continuous operation.

A preferred choice for slow-speed agitators, augers, CIP-connected equipment, and clean conveying systems.

€1,092.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key Features:

- IP 69K protection: Keeps the motor safe from dust and water ingress.

- Energy-efficient design: IE4 classification reduces power consumption.

- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.

- Reliable output: Generates 0.75 kW power for industrial applications.

- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.

- Thermal protection: Includes PTO for extended motor life.

Specifications:

- Model: TENV90S-6

- Power Output: 0.75 kW

- Nominal Torque: 7.6 Nm

- Efficiency Rating: 82.5%

- Starting Current Ratio: 5.7

- Certifications: UL, cURus

Specifications

IP classification
IP 69K
Model
TENV90S-6
Speed (RPM)
940
Rated output (kW)
0.75
Efficiency (% FL)
82.5
Voltage connection (Δ/Y)
230/400
Rated current at voltage
3,11/1,8
Nominal torque (Nm)
7.6
Start current ratio (IA/IN)
5.7
Mounting
B14
BCD
115
Poles
6
Efficiency standard
IE4
Shaft diameter (mm)
24
Cooling
TENV
Country of origin
ITA
HS-Code
85015100.000000
ERP net weight (Kg)
32.500000

Downloads

3dfile 3dfile stp dataSheet dataSheet pdf installationManual installationManual pdf

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
32.50
Country of origin
ITA
