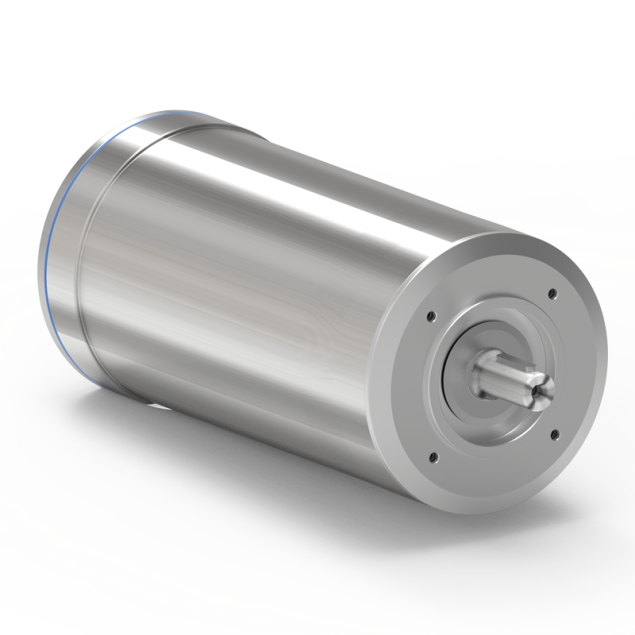

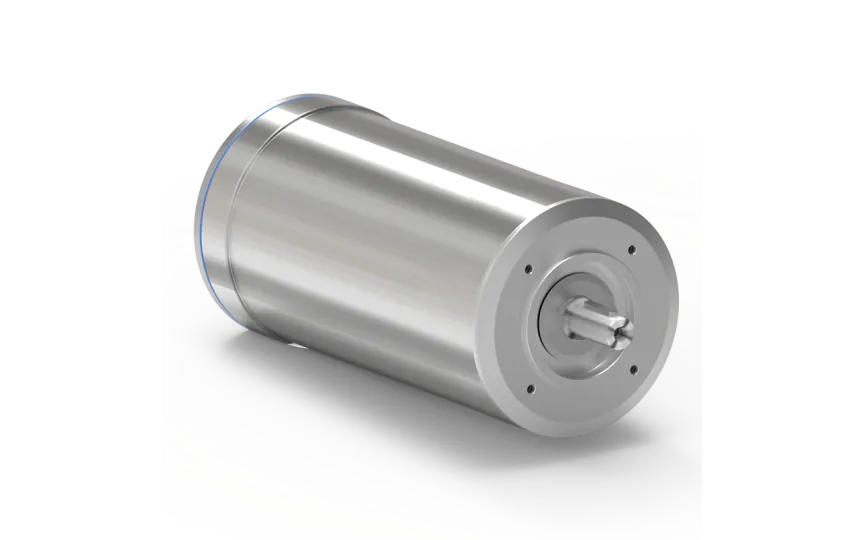

BJ-Gear TENV90S-2 IP69K, AC-Motor, B14, 1.5KW, 2930RPM, Stainless steel

HV82SPMEKK2JTENN4KSA1-N---NNN

The Clean Geartech TENV90S-2 is a compact, high-speed stainless steel AC motor built for demanding hygienic environments. Providing 1.5 kW at 2930 RPM (2-pole, 50 Hz), it meets IEC 90S dimensions and supports 230/400 V operation—ideal for continuous-duty use in food, pharmaceutical, and cleanroom applications.

Its TENV (Totally Enclosed Non-Ventilated) enclosure eliminates airflow within the motor, significantly reducing the risk of contamination. The IP69K-rated stainless steel housing is designed for aggressive cleaning processes, withstanding high-pressure, high-temperature washdowns, and chemical exposure.

With a B14 face flange, this motor offers a compact mounting interface—perfect for integration into tight machine layouts, including direct drive to hygienic pumps, gearboxes, or mixers. Insulation class F and sealed bearings ensure long life with low maintenance.

Engineered for applications requiring speed, precision, and uncompromising hygiene.

€983.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key Features:

- IP 69K protection: Keeps the motor safe from dust and water ingress.

- Energy-efficient design: IE4 classification reduces power consumption.

- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.

- Reliable output: Generates 1.5 kW power for industrial applications.

- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.

- Thermal protection: Includes PTO for extended motor life.

Specifications:

- Model: TENV90S-2

- Power Output: 1.5 kW

- Nominal Torque: 4.9 Nm

- Efficiency Rating: 86.5%

- Starting Current Ratio: 10.5

- Certifications: UL, cURus

Specifications

IP classification
IP 69K
Model
TENV90S-2
Speed (RPM)
2930
Rated output (kW)
1.5
Efficiency (% FL)
86.5
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4,84/2,8
Nominal torque (Nm)
4.9
Start current ratio (IA/IN)
10.5
Mounting
B14
BCD
115
Poles
2
Efficiency standard
IE4
Shaft diameter (mm)
24
Cooling
TENV
Country of origin
ITA
HS-Code
85015220.000000
ERP net weight (Kg)
32.600000

Downloads

3dfile 3dfile stp dataSheet dataSheet pdf installationManual installationManual pdf

Foreign trade

HS-Code
85015220
ERP net weight (Kg)
32.60
Country of origin
ITA
