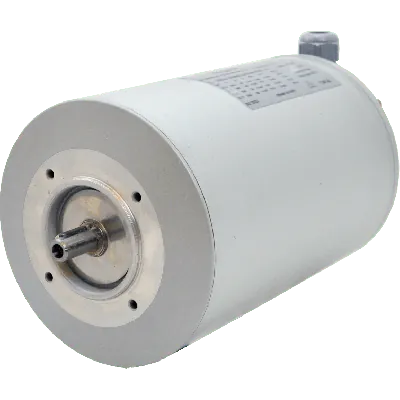

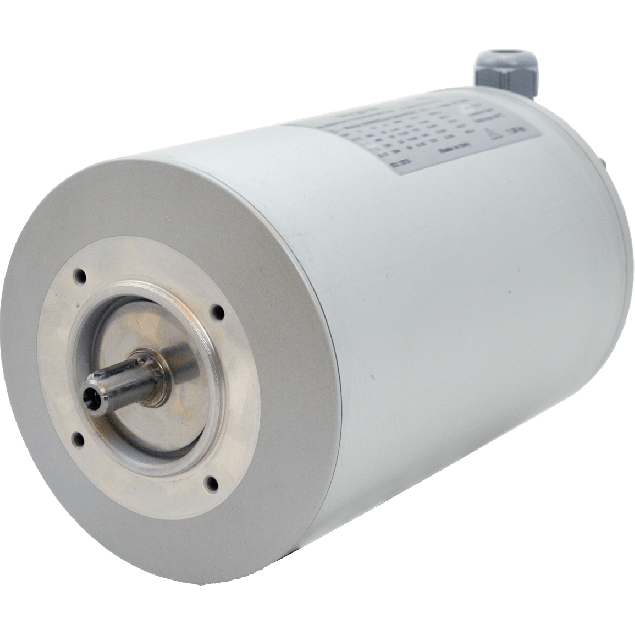

calcPageSize())" />Clean Geartech AC motor TENV90L-2, 2,2kW, 2920RPM, B14, 230/400, Aluminium
HV82APMEKL2JTENN4KCR2-N---NNNThe Clean Geartech TENV90L-2 is a high-speed 2.2 kW AC motor, engineered in corrosion-resistant aluminium for demanding washdown and hygienic applications. Operating at 2920 RPM with 2 poles, it provides a solid 7.2 Nm nominal torque, making it ideal for fast processing lines and systems that require quick, stable throughput. Built to meet IP69K protection, it withstands intensive high-pressure, high-temperature cleaning, ensuring compliance with strict hygiene standards in food, beverage, and pharmaceutical industries. The Totally Enclosed Non-Ventilated (TENV) cooling system eliminates external airflow, preventing contamination. Designed for IEC 90 frame size with a robust Ø24 mm shaft, it ensures straightforward integration into existing systems. With IE4 efficiency, it supports long-term energy savings and sustainable operations. Certified to UL and cURus standards and equipped with PTO thermal protection, this motor is a reliable, low-maintenance drive solution that helps safeguard your process uptime and quality.
Made to order
Expected shipment:
More Information
Description

Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Aluminium construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 2.2 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV90L-2
- Power Output: 2.2 kW
- Nominal Torque: 7.2 Nm
- Efficiency Rating: 86.0%
- Starting Current Ratio: 8.5
- Certifications: UL, cURus
