Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Aluminium construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.55 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:

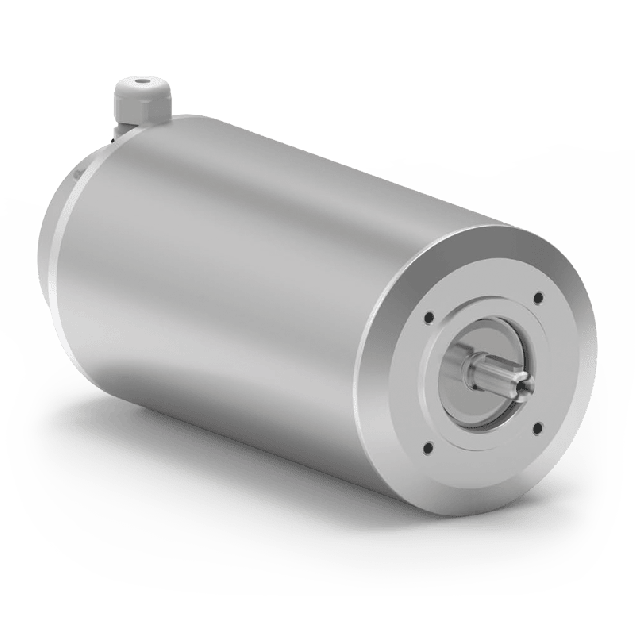

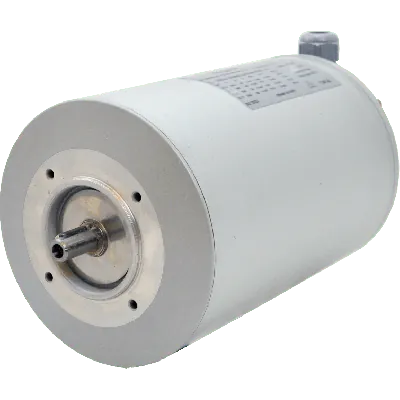

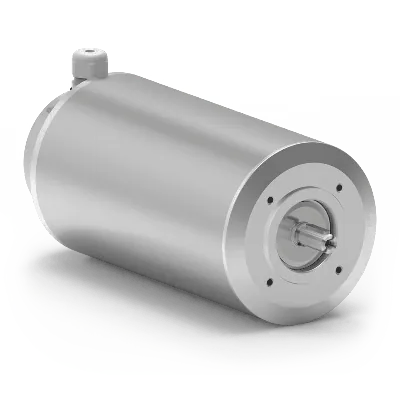

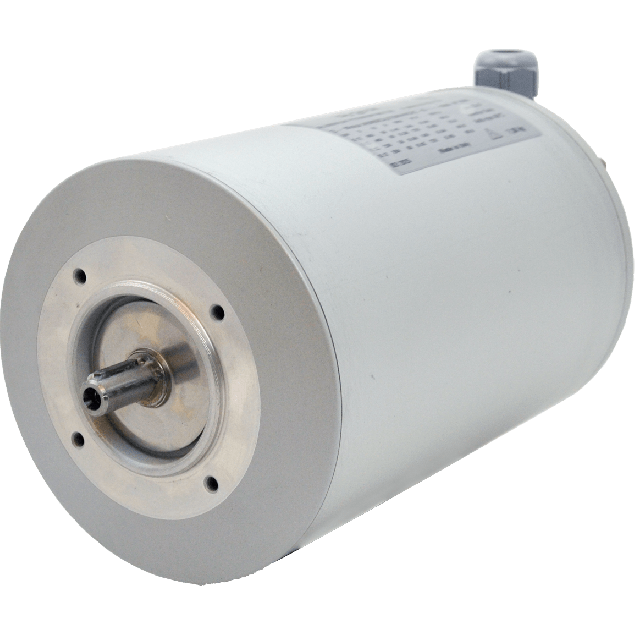

- Model: TENV80B-6
- Power Output: 0.55 kW
- Nominal Torque: 5.3 Nm
- Efficiency Rating: 78.0%
- Starting Current Ratio: 3.7
- Certifications: UL, cURus
Specifications
IP classification
IP 69K
Model
TENV80B-6
Speed (RPM)
900
Rated output (kW)
0.55
Efficiency (% FL)
78
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2,6/1,5
Nominal torque (Nm)
5.3
Start current ratio (IA/IN)
3.7
Mounting
B14
BCD
100
Poles
6
Efficiency standard
IE4
Shaft diameter (mm)
19
Cooling
TENV
Country of origin
ITA
HS-Code
85015100.000000
ERP net weight (Kg)
16.800000
Downloads
Foreign trade
HS-Code
85015100
ERP net weight (Kg)
16.80
Country of origin
ITA
