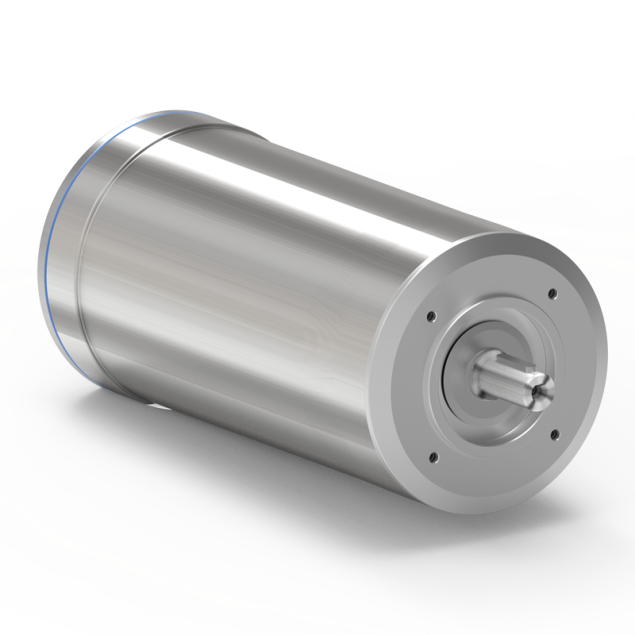

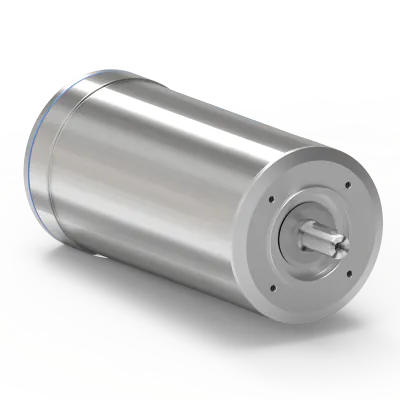

Clean Geartech TENV80B-2 IP69K, AC-Motor, B14, 1.1KW, 2910RPM, Stainless steel
HV82SPMDKI2JTENN4KSA1-N---NNNThe Clean Geartech TENV80B-2 is a compact, high-speed AC motor delivering 1.1 kW at 2910 RPM (2-pole, 50 Hz), built for hygienic applications with strict sanitation demands. Designed with a B14 face flange, this motor is well-suited for space-constrained installations and direct-coupled hygienic drives.
Its Totally Enclosed Non-Ventilated (TENV) housing prevents internal airflow, reducing contamination risks in clean production zones. With a fully smooth stainless steel enclosure certified to IP69K, it withstands daily exposure to high-pressure and high-temperature washdowns—ideal for food, beverage, and pharmaceutical industries.
Equipped with sealed bearings and insulation class F, it ensures efficient operation in wet, aggressive environments while reducing maintenance needs.
Optimized for filling machines, packaging lines, small agitators, and precision-driven hygienic machinery requiring high-speed, space-efficient performance.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 1.1 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80B-2
- Power Output: 1.1 kW
- Nominal Torque: 3.6 Nm
- Efficiency Rating: 86.4%
- Starting Current Ratio: 12.8
- Certifications: UL, cURus
