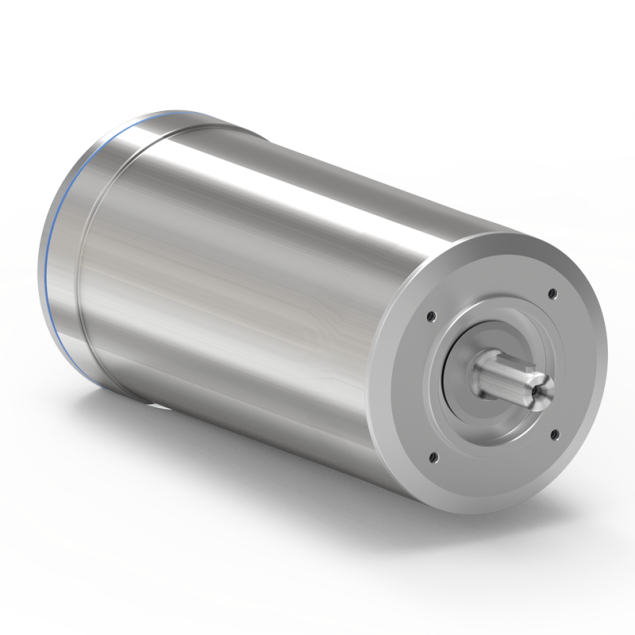

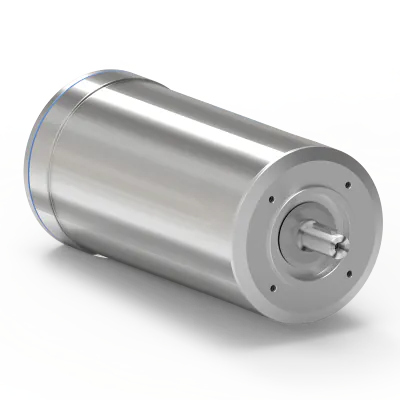

Clean Geartech TENV80A-6 IP69K, AC-Motor, B14, 0.37KW, 890RPM, Stainless steel
HV82SPMDKF6JTENN4KSA1-N---NNNThe Clean Geartech TENV80A-6 is a robust, stainless steel AC motor specifically engineered for low-speed applications in hygiene-sensitive environments. With a rated output of 0.37 kW at 890 RPM (6-pole, 50 Hz), this motor uses an IEC 80A frame and features B14 face flange mounting, making it suitable for compact integration into process equipment and gear units.
Its TENV (Totally Enclosed Non-Ventilated) design provides a fully sealed motor without internal air circulation, ideal for sanitary installations where contamination control is critical. The IP69K stainless steel housing ensures resistance to high-pressure and high-temperature washdowns, supporting compliance with strict food and pharmaceutical standards.
Sealed bearings, class F insulation, and corrosion-resistant construction deliver long-term durability and maintenance-free operation in wet and aggressive environments.
Ideal for low-speed conveyors, augers, dosing units, and mixing systems in cleanroom and washdown zones.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.37 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80A-6
- Power Output: 0.37 kW
- Nominal Torque: 3.98 Nm
- Efficiency Rating: 76.3%
- Starting Current Ratio: 3.4
- Certifications: UL, cURus
