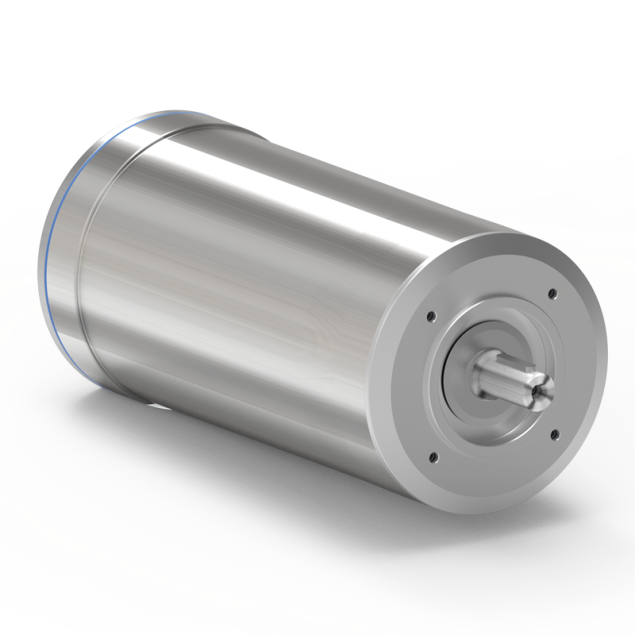

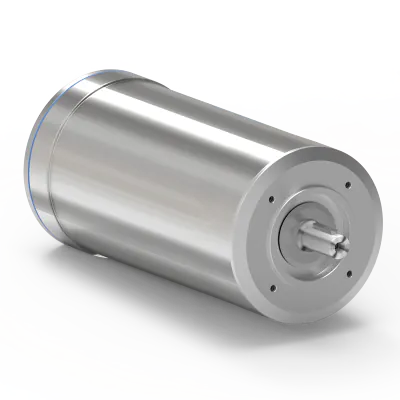

Clean Geartech TENV80A-2 IP69K, AC-Motor, B14, 0.75KW, 2900RPM, Stainless steel
HV82SPMDKH2JTENN4KSA1-N---NNNThe Clean Geartech TENV80A-2 is a high-speed, compact stainless steel AC motor developed for hygienic environments that demand both mechanical performance and washdown compatibility. Delivering 0.75 kW at 2900 RPM (2-pole, 50 Hz), this motor is housed in an IEC 80 frame and supports 230/400 V operation.
Its TENV (Totally Enclosed Non-Ventilated) design offers a fanless, fully sealed housing that prevents internal airflow and contamination. The smooth stainless steel enclosure is IP69K-rated, ensuring full resistance to high-pressure and high-temperature cleaning — ideal for food processing, pharmaceutical production, and CIP environments.
The B14 face flange allows precise, space-efficient mounting on stainless steel gearboxes and compact machinery. With insulation class F and sealed bearings, the motor is built for continuous-duty performance with minimal maintenance in humid or chemically exposed zones.
An optimal solution for high-speed drives in cleanroom conveyors, automated processing units, filling systems, and hygienic rotary mechanisms.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.75 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV80A-2
- Power Output: 0.75 kW
- Nominal Torque: 2.45 Nm
- Efficiency Rating: 84.6%
- Starting Current Ratio: 12.5
- Certifications: UL, cURus
