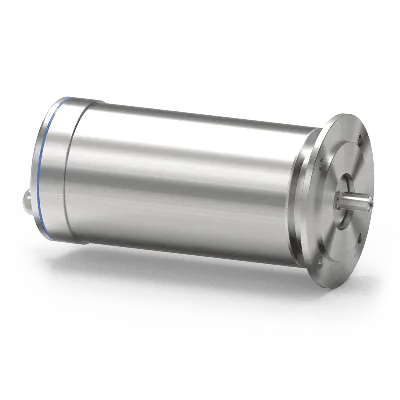

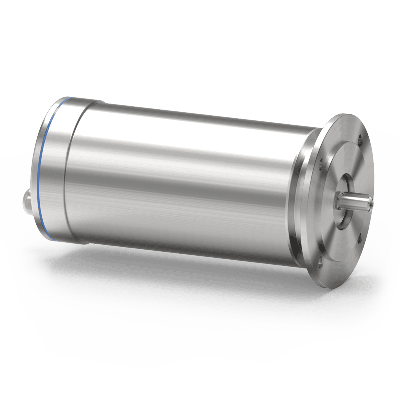

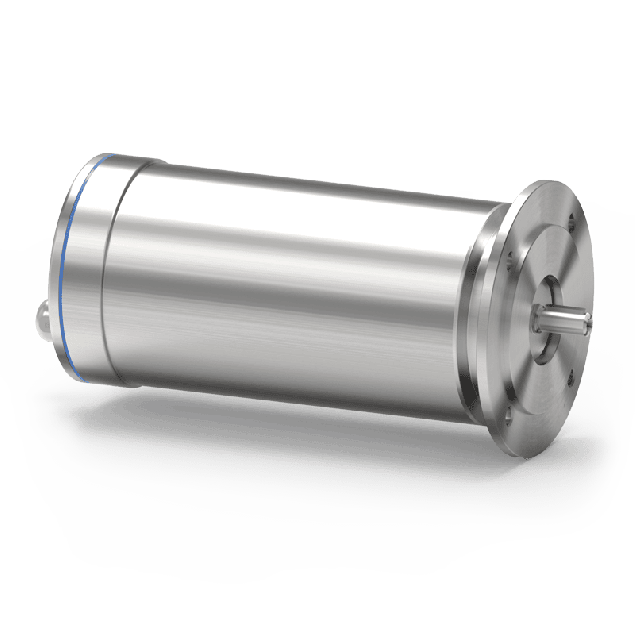

Clean Geartech TENV71B-6 IP69K, AC-Motor, B5, 0.25KW, 890RPM, 230/400, Stainless steel
HV82SPMCKE6GTENN4KSA1-N---NNNThe Clean Geartech TENV71B-6 is a low-speed stainless steel AC motor tailored for hygienic and washdown-critical environments. With an output of 0.25 kW at 890 RPM (6-pole, 50 Hz), this motor is built on an IEC 71 frame and operates at 230/400 V.
Its TENV (Totally Enclosed Non-Ventilated) construction offers a fully sealed, fanless design, effectively preventing contamination and allowing for use in cleanrooms, wet zones, and aggressive cleaning conditions. The IP69K rating guarantees maximum protection against water and cleaning chemicals, making it ideal for food, beverage, and pharmaceutical applications.
Equipped with a B5 full-face flange, the motor allows rigid mounting directly to stainless steel gearboxes or hygienic equipment frames. It is designed with insulation class F and maintenance-free bearings, ensuring long-lasting and reliable performance even under continuous operation.
An ideal choice for slow-speed drives in CIP equipment, augers, rotary valves, and systems requiring frequent high-pressure sanitation.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.25 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV71B-6
- Power Output: 0.25 kW
- Nominal Torque: 2.65 Nm
- Efficiency Rating: 72.2%
- Starting Current Ratio: 3.4
- Certifications: UL, cURus
