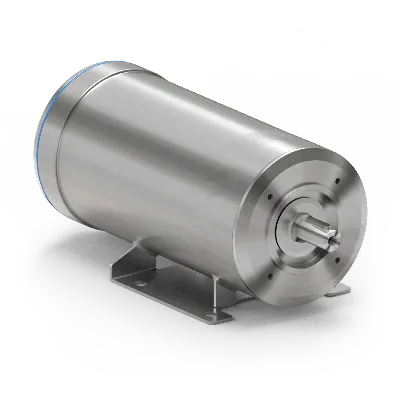

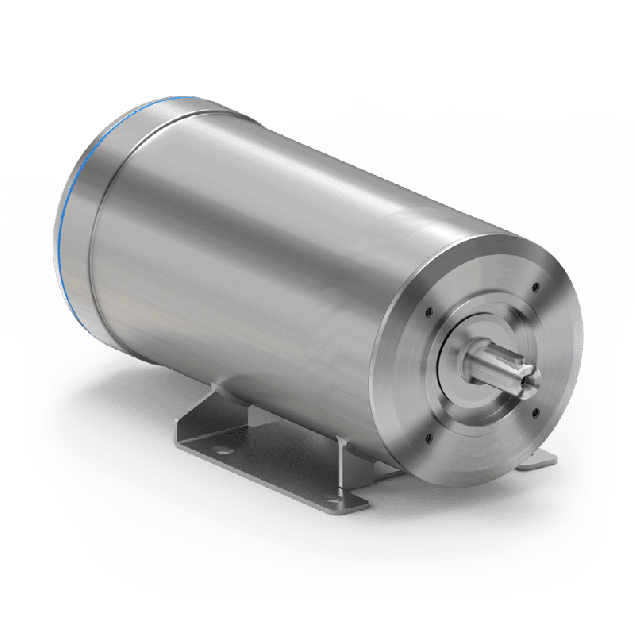

Clean Geartech TENV71B-6 IP69K, AC-Motor, B34, 0.25KW, 890RPM, 230/400, Stainless steel
HV82SPMCKE6PTENN4KSA1-N---NNNThe Clean Geartech TENV71B-6 is a hygienic, low-speed stainless steel AC motor engineered for use in washdown-intensive and space-constrained environments. Rated at 0.25 kW and operating at 890 RPM (6-pole, 50 Hz), the motor is built on an IEC 71 frame and supports 230/400 V operation.
Its TENV (Totally Enclosed Non-Ventilated) enclosure offers a sealed, fanless design that eliminates airflow through the motor, minimizing the risk of contamination. The housing is fully IP69K-certified, making it suitable for high-pressure, high-temperature washdowns in industries such as food, beverage, and life science.
The B34 mounting configuration combines foot and face flange options, allowing flexible installation in compact machinery and hygienic drive systems. Insulation class F and sealed bearings ensure reliable performance and long service life in demanding operating conditions.
A versatile solution for CIP environments, slow-speed conveyor drives, augers, or metering systems in hygienically regulated production lines.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.25 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV71B-6
- Power Output: 0.25 kW
- Nominal Torque: 2.65 Nm
- Efficiency Rating: 72.2%
- Starting Current Ratio: 3.4
- Certifications: UL, cURus
