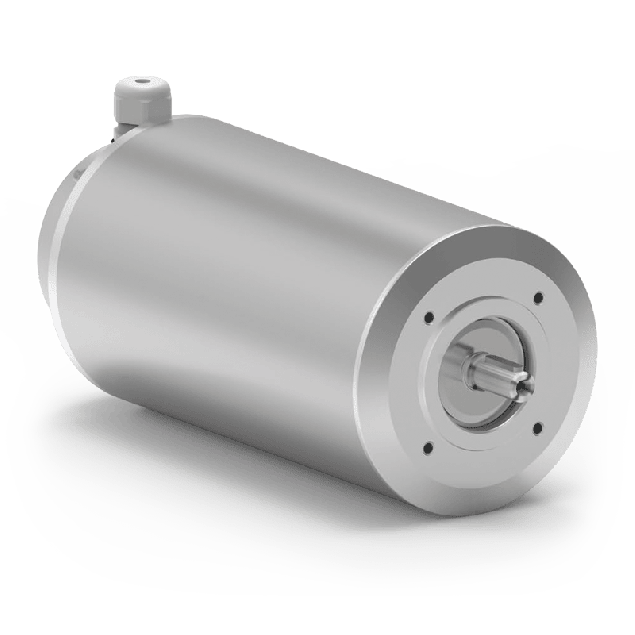

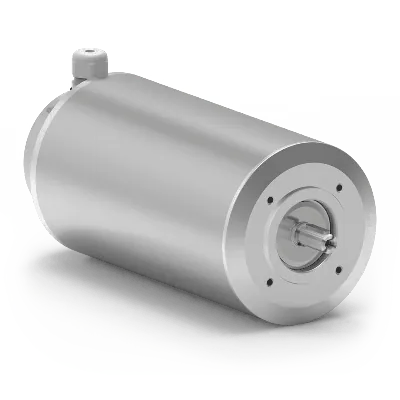

Clean Geartech AC motor TENV71B-4, 0,37kW, 1440RPM, B14, 230/400, , Aluminium
HV82APMCKF4JTENN4KCR2-N---NNNThe Clean Geartech TENV71B-4 AC-Motor, with 0.37KW power and a speed of 1440RPM, is a high-performance AC motor designed for industrial environments. Crafted from durable aluminium, it offers exceptional IE4 efficiency and is compatible with both 230V and 400V power supplies. This robust motor features a Totally Enclosed Non-Ventilated (TENV) design, ensuring it remains protected from contaminants and can withstand rigorous wash-down procedures.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Aluminium construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.37 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV71B-4
- Power Output: 0.37 kW
- Nominal Torque: 2.45 Nm
- Efficiency Rating: 80.7%
- Starting Current Ratio: 7.4
- Certifications: UL, cURus
