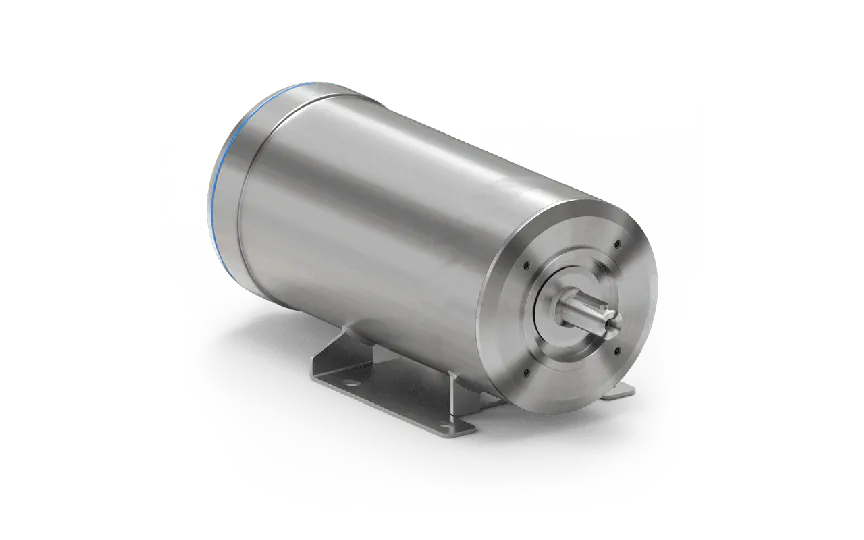

Stainless steel IP69K AC motor with B34 mounting for food and process industries

The BJ-Gear TENV71A-4 is engineered for industrial drive systems where hygienic design, dependable operation and installation flexibility are essential. Its 4-pole design delivers an excellent balance between speed and torque, making it an ideal choice for conveyor systems, geared motors, dosing equipment, labelling machines, packaging machinery and other hygienic process equipment.

The integrated B34 mounting, combining foot and face flange mounting, provides maximum installation flexibility and simplifies integration into both new machinery and retrofit projects. It is particularly suitable for geared motors and industrial drive systems where versatile mounting options are required.

The smooth stainless steel housing is easy to clean and highly resistant to corrosion. Combined with the Totally Enclosed Non-Ventilated (TENV) design, the motor prevents moisture and contaminants from entering the enclosure. Its IP69K protection rating makes it suitable for frequent high-pressure and hot-water washdowns, while the integrated PTO thermal protection enhances reliability during continuous-duty operation.

The compact IEC 71A frame provides an excellent balance between installation size and mechanical stability, while the IE4 efficiency class helps reduce energy consumption and long-term operating costs.

Why customers choose this motor

• Hygienic stainless steel construction

• Flexible B34 foot and face flange mounting

• Excellent balance between speed and torque

• IP69K protection for washdown environments

• Totally Enclosed Non-Ventilated (TENV) design

• Energy-efficient IE4 technology

• Integrated PTO thermal protection

• Corrosion-resistant, low-maintenance construction

Typical applications

• Food processing

• Beverage production

• Dairy processing

• Pharmaceutical manufacturing

• Conveyor systems

• Geared motor applications

• Packaging and labelling machinery

• Hygienic process equipment
