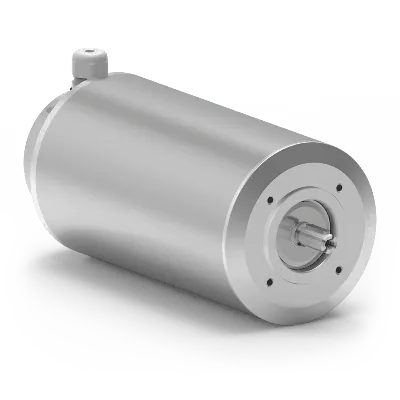

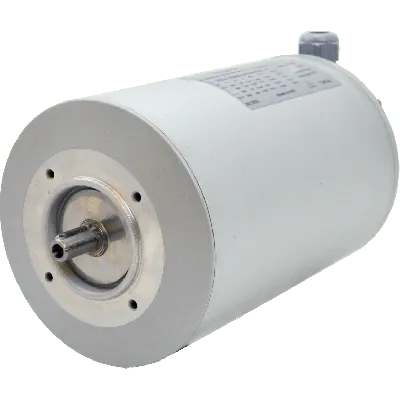

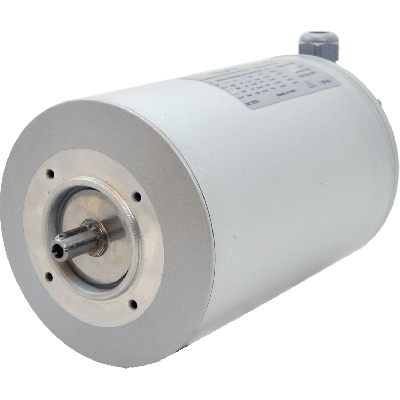

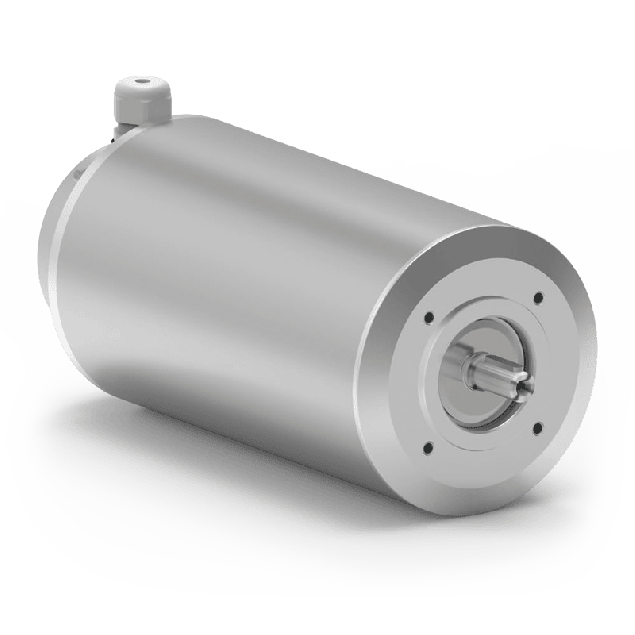

calcPageSize())" />Clean Geartech AC motor TENV71A-2, 0,37kW, 2930RPM, B14, 230/400, Aluminium
HV82APMCKF2JTENN4KCR2-N---NNNThe Clean Geartech TENV71A-2 is a compact, high-speed 0.37 kW AC motor, engineered in corrosion-resistant aluminium, specifically for demanding hygienic environments. Operating at 2930 RPM with 2 poles, it delivers a reliable 1.23 Nm nominal torque, ideal for lightweight conveyor systems, packaging lines, and small mixers that require steady, high-speed operation. With its robust IP69K enclosure, the motor withstands intensive high-pressure and high-temperature cleaning, ensuring full compliance with stringent hygiene standards in the food, beverage, and pharmaceutical sectors. The Totally Enclosed Non-Ventilated (TENV) cooling system prevents any external airflow, eliminating contamination risks and supporting controlled environments. Built to the IE4 efficiency class, it minimizes energy consumption and operating costs. Designed with a Ø14 mm shaft for IEC 71 frame mounting, this motor integrates seamlessly into existing process systems. Certified to UL and cURus standards and equipped with PTO thermal protection, it represents a durable, low-maintenance drive solution that safeguards your critical production uptime.
Made to order
Expected shipment:
More Information
Description

Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Aluminium construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.37 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV71A-2
- Power Output: 0.37 kW
- Nominal Torque: 1.23 Nm
- Efficiency Rating: 82.5%
- Starting Current Ratio: 8.8
- Certifications: UL, cURus
