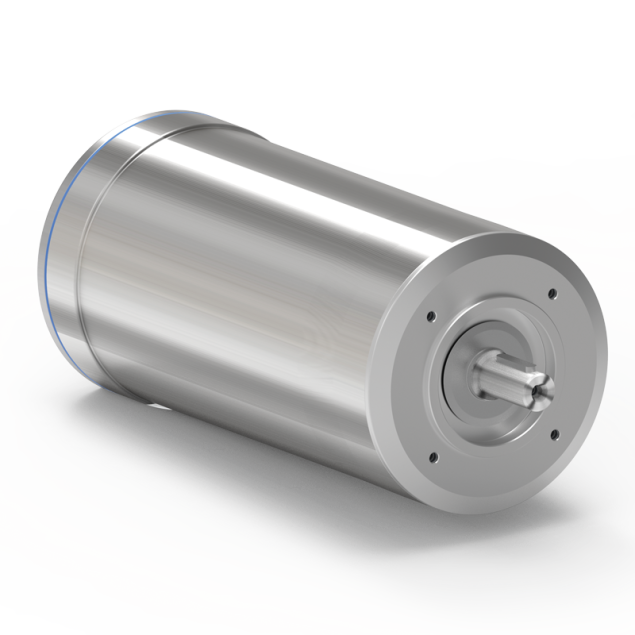

Clean Geartech TENV63B-2 IP69K, AC-Motor, B14, 0.25KW, 2895RPM, Stainless steel
HV82SPMBKE2JTENN4KSA1-N---NNNThe Clean Geartech TENV63B-2 is a high-speed, hygienically designed AC motor tailored for compact equipment used in demanding washdown areas. With a power output of 0.25 kW at 2895 RPM (2-pole, 50 Hz), it is built on an IEC 63 frame and operates at 230/400 V.
Encased in a TENV (Totally Enclosed Non-Ventilated) stainless steel housing, the motor eliminates internal airflow, reducing risk of particle contamination or ingress of moisture. Its IP69K protection rating ensures durability during frequent cleaning with high-pressure and high-temperature water jets.
The B14 face flange makes this motor ideal for direct integration into stainless gearboxes, compact pump systems, and food-safe automation setups. Insulation class F and sealed bearings ensure maintenance-free performance, even in high humidity or chemical exposure.
An excellent fit for compact drives in packaging, dosing, and conveyor systems where sanitation and speed are key.
Made to order
Expected shipment:
More Information
Description
Key Features:
- IP 69K protection: Keeps the motor safe from dust and water ingress.
- Energy-efficient design: IE4 classification reduces power consumption.
- Sturdy Stainless steel construction: Ensures longevity and corrosion resistance.
- Reliable output: Generates 0.25 kW power for industrial applications.
- Cooling system: Equipped with Totally Enclosed Non Ventilated (TENV) cooling for effective temperature control.
- Thermal protection: Includes PTO for extended motor life.
Specifications:
- Model: TENV63B-2
- Power Output: 0.25 kW
- Nominal Torque: 0.84 Nm
- Efficiency Rating: 74.3%
- Starting Current Ratio: 7.8
- Certifications: UL, cURus
