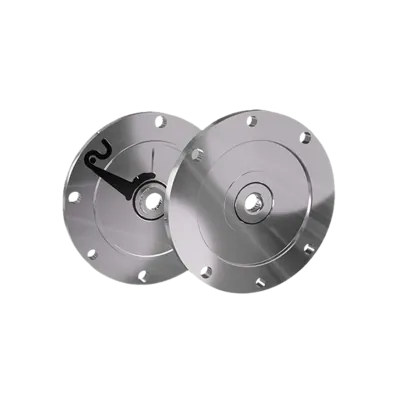

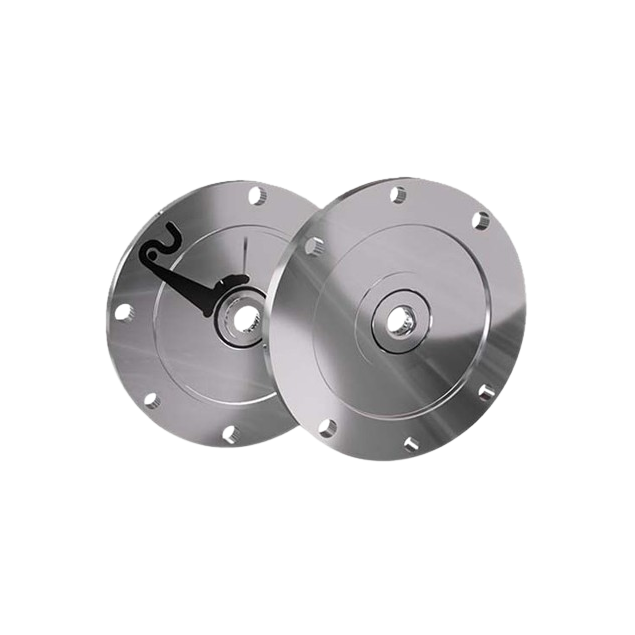

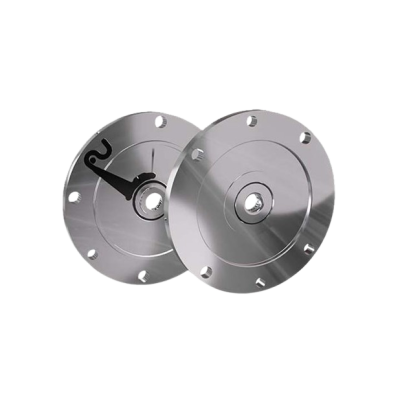

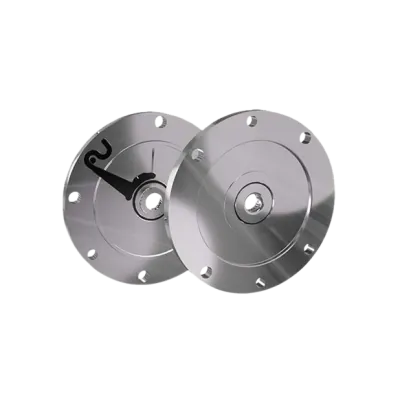

BEGE flange encoder MNV2A 160-28-006495, 64 pulses, 5m cable, stainless steel

hv500552

The BEGE flange encoder MNV2A-160-28-006495 delivers 64 pulses per revolution, making it a reliable choice for mid-resolution speed and position feedback. Designed for IEC 100/112B14 motors, this robust encoder features a Ø28 mm solid shaft, a Ø160 mm housing, and a 9 mm flange thickness, mounted via a 130 mm bolt circle (BCD). The stainless steel IP55-rated housing ensures long-term durability in harsh or hygienic environments. Delivered with a 5.0 m cable for easy integration.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Pulses

Outer diameter (mm)

Ø160

Flange thickness (mm)

Material

Stainless steel

Cable length (m)

Shaft diameter (mm)

Ø28

IEC norm

100/112B14

BCD norm

130

HS-Code

90292038.000000

Description

Key features:

Universal compatibility: Fits on IEC standard electric motor, providing seamless integration.
Contactless signal measurement: Delivers stable and accurate signal measurement without the need for physical contact.
Robust protection: Designed to be dustproof, shock-resistant, and water-resistant, guaranteeing optimal performance in challenging conditions.
High-pressure cleaning resistant: Offers protection against high-pressure cleaning processes.
IP classification: As standard, IP55; upgrade to IP67 possible depending on the sealant used between motor and machine flange.

Specifications:
