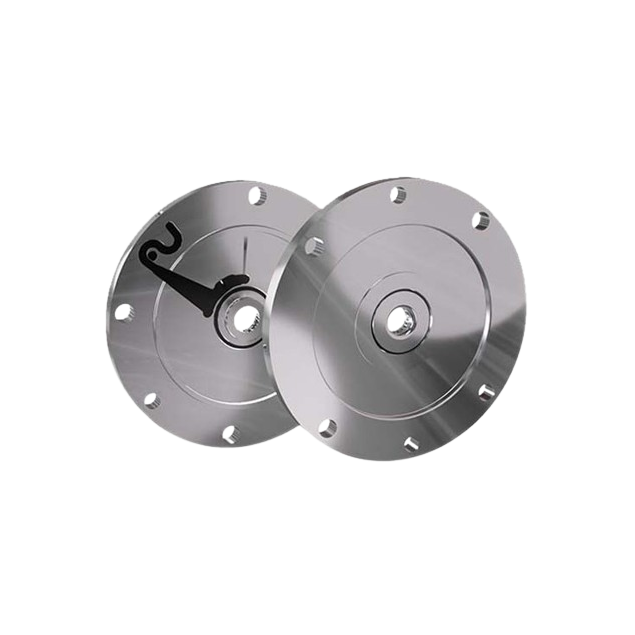

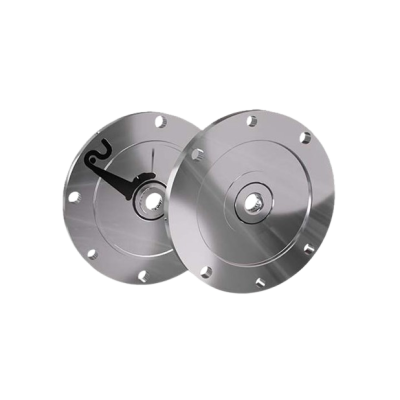

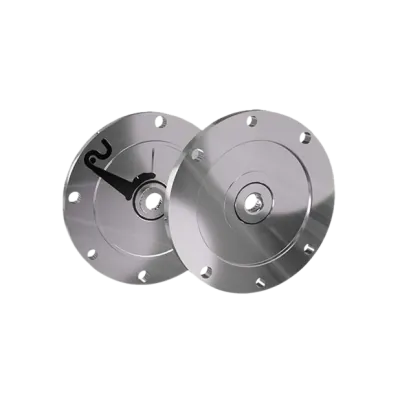

BEGE flange encoder MNV2A-160-28-0649, 64 pulses, 2m cable, stainless steel
HV500551The BEGE flange encoder MNV2A-160-28-0649 is a high-quality stainless steel encoder designed for accurate speed and position feedback in industrial automation. Delivering 64 pulses per revolution, with a shaft diameter of Ø28 mm and a 2 m pre-assembled cable, it ensures precise and reliable signal transmission for control systems.
This encoder has an outer diameter of Ø160 mm and a flange thickness of 9 mm, manufactured to the IEC 100/112B14 standard with BCD 130 mm, making it easy to integrate with IEC-compliant motors and gear units. The stainless steel construction ensures excellent corrosion resistance and long service life in demanding environments.
Produced by BEGE Power Transmission, a Dutch manufacturer with over 70 years of experience in drive technology, this encoder reflects BEGE’s reputation for reliable, efficient, and precise components. Their products are trusted across industries such as food processing, logistics, packaging, and heavy industry, where accuracy and durability are critical.
With IP55 protection, the encoder is resistant to dust ingress and water jets, ensuring dependable performance even in challenging operating conditions.
Made to order
Expected shipment:
More Information
Description
Key features:
- Fits on IEC standard electric motors, providing versatility and compatibility.
- Stable contactless signal measurement ensures accurate and reliable data.
- Dustproof and fully shock-resistant, protecting the encoder from environmental hazards.
- Water-resistant design safeguards against liquids and high-pressure cleaning.
- IP classification: Standard rating at IP55; potential upgrade to IP67 achievable based on the selected sealant between the motor and machine flange.
Specifications:
- For motor size: 100/112B14
- Temperature range: -30°C to +80°C, ensuring reliable operation in extreme conditions.
Materials:
- Flange: Constructed from stainless steel.
- Hub: Made from stainless steel.
