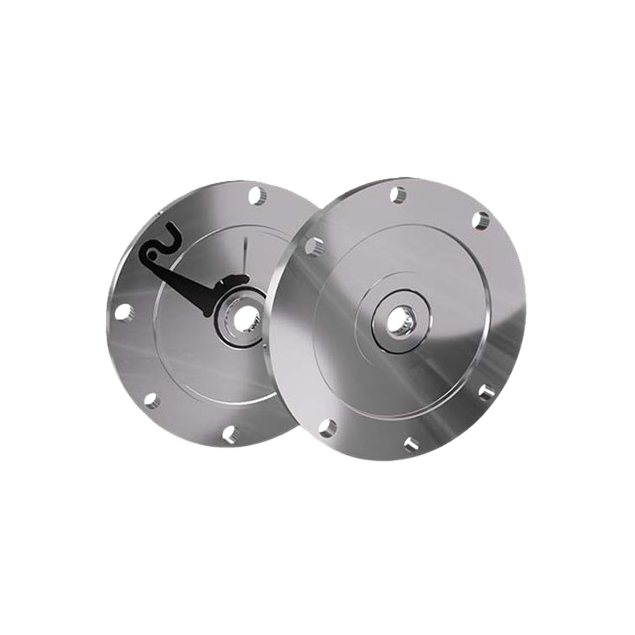

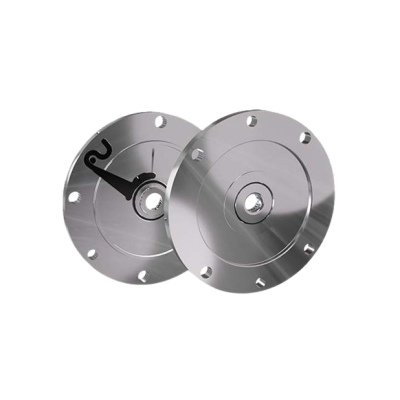

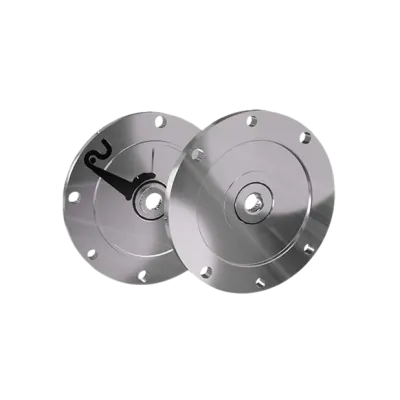

BEGE flange encoder MNV2A-140-24-10249, 1024 pulses, 50m cable, stainless steel
HV500519The MIG SS flange encoder from BEGE with a 140mm flange. This high-quality encoder is designed to excel in demanding environments, offering durability and precision. Whether you're operating in hygienic or corrosive settings such as the food production or marine industry, this encoder is built to withstand the tough conditions and deliver reliable performance.
Specifications
Product description
Downloads
€986.00
Made to order
Expected shipment: 21-03-2025
More Information
IP classification
IP 55
Pulses
1024
Outer diameter (mm)
Ø140
Flange thickness (mm)
9
Material
Stainless steel
Cable length (m)
50
Shaft diameter (mm)
Ø24
BCD norm
115
Description
Key features:
- Universal compatibility: Fits on a IEC standard electric motor, ensuring easy integration into your existing setup.
- Stable contactless signal measurement: Secures accurate and consistent signal measurements.
- Robust protection: The MIG SS flange encoder is shielded against dust, liquid, and corrosion, guaranteeing uninterrupted operation in harsh environments.
- High-pressure cleaning resistant: With protection against high-pressure cleaning, this encoder maintains its functionality even during intense cleaning processes.
- IP Rating: Commencing at an IP55 standard classification, the potential for an upgrade to IP67 is available, subject to the sealant chosen between the motor and machine flange.
Specifications:
- For motor size: B14.
- Temperature range: From -30°C to +80°C.
Materials:
- Flange: Constructed with stainless steel.
- Hub: Made from stainless steel.
