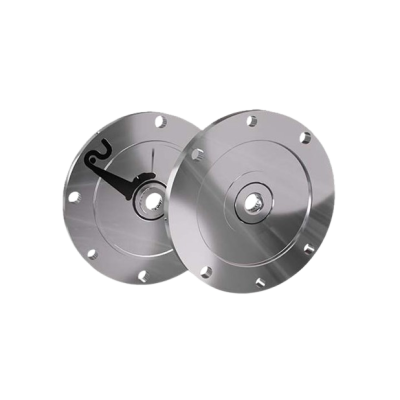

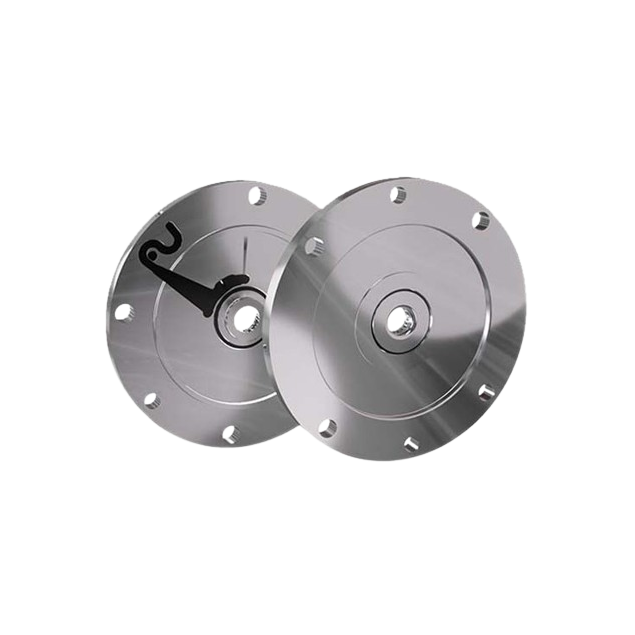

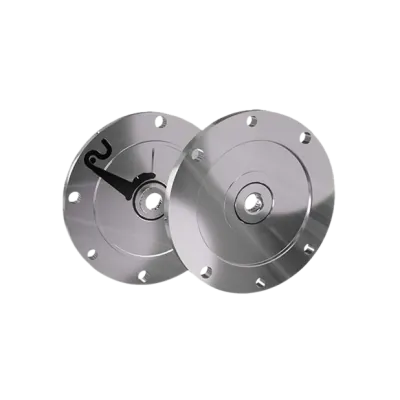

BEGE flange encoder MNV2A-140-24-10249, 1024 pulses, 100m cable, stainless steel
HV500520The BEGE flange encoder MNV2A-140-24-10249 provides 1024 pulses per revolution, making it a top choice for precision positioning and speed monitoring in demanding environments. Suitable for IEC 90B14 motors, this encoder includes a Ø24 mm solid shaft, Ø140 mm outer diameter, and 9 mm flange thickness, mounted using a 115 mm bolt circle (BCD). Its IP55 stainless steel housing ensures corrosion resistance and durability under harsh industrial conditions. Supplied with a generous 100.0 m cable for flexible and long-distance installation.
Made to order
Expected shipment:
More Information
Description
Key features:
- Universal fit: Compatible with IEC standard electric motor, providing versatile integration options.
- Contactless signal measurement: Ensures stable and reliable signal detection without physical contact, reducing wear and tear.
- Complete protection: Designed to withstand dirt, liquids, and corrosion, making it ideal for challenging environments.
- High-pressure cleaning protection: Withstands cleaning processes, ensuring uninterrupted operation and longevity.
- IP Rating: Standard IP55 classification, with the opportunity for an upgrade to IP67 exists, depending on the sealant selected between the motor and machine flange.
Specifications:
- For motor size: B14
- Temperature range: -30°C to +80°C
Materials:
- Flange: Constructed from stainless steel.
- Hub: Made from stainless steel.
