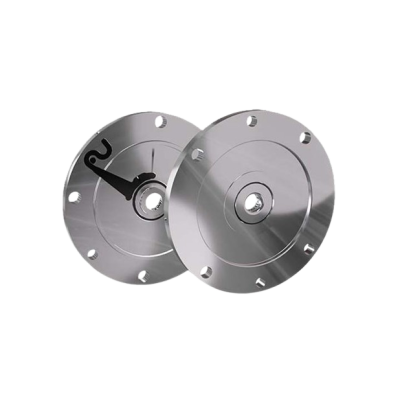

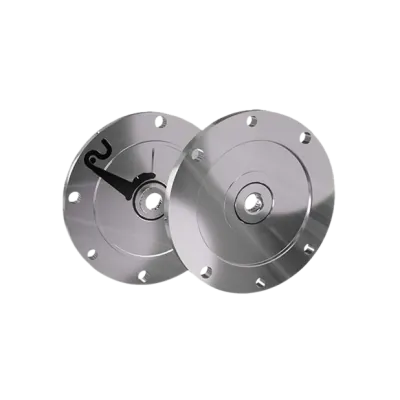

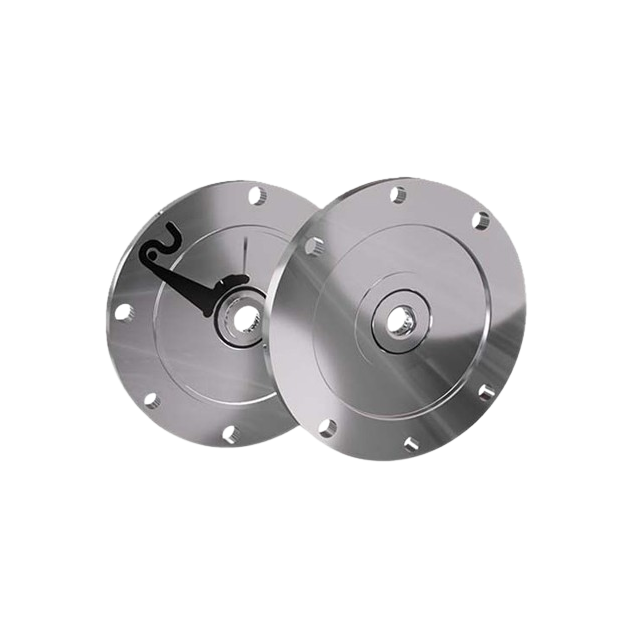

BEGE flange encoder MNV2A-120-19-102470, 1024 pulses, 5m cable, stainless steel
HV500521The MIG SS flange encoder from BEGE with a flange diameter of 120mm. This encoder is purpose-built for use in demanding environments, such as food production and marine industries, where hygiene and resistance to corrosion are paramount.
Specifications
Product description
Downloads
€524.40
In stock
Expected shipment: 07-02-2025
More Information
IP classification
IP 55
Pulses
1024
Outer diameter (mm)
Ø120
Flange thickness (mm)
7
Material
Stainless steel
Cable length (m)
5
Shaft diameter (mm)
Ø19
BCD norm
100
Description
Key features:
- Universal compatibility: Designed to fit IEC standard electric motors, ensuring seamless integration into existing systems.
- Contactless signal measurement: Utilizes advanced technology for stable and accurate signal measurement without physical contact.
- Complete protection: Dustproof, shock and water-resistant.
- High-pressure cleaning tesistant: Safeguarded against high-pressure cleaning processes, ensuring sustained functionality and longevity.
- IP rating: Starting with a standard IP55 classification, there's an option for an upgrade to IP67, contingent on the choice of sealant between the motor and machine flange.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Constructed from stainless steel.
- Hub: Made from stainless steel.
