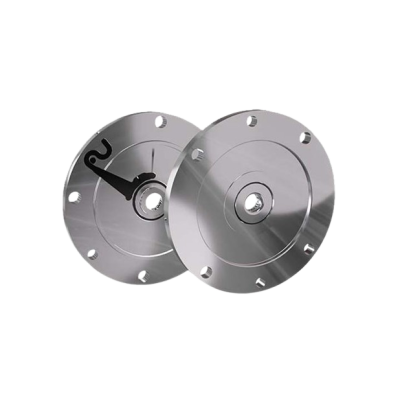

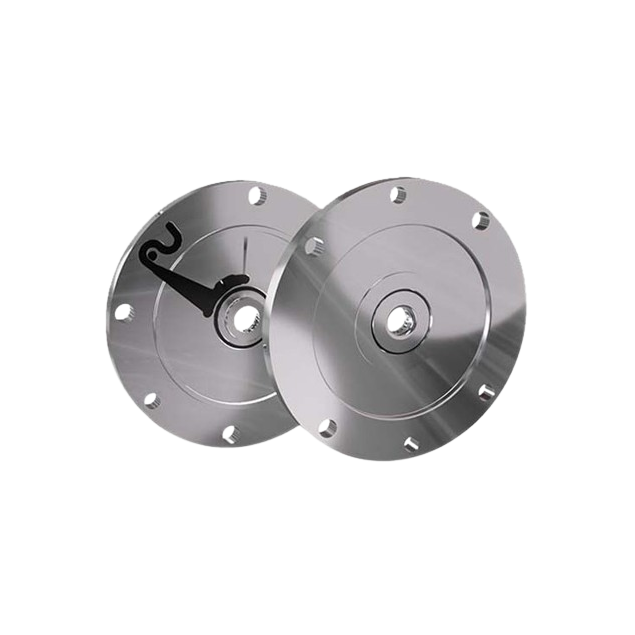

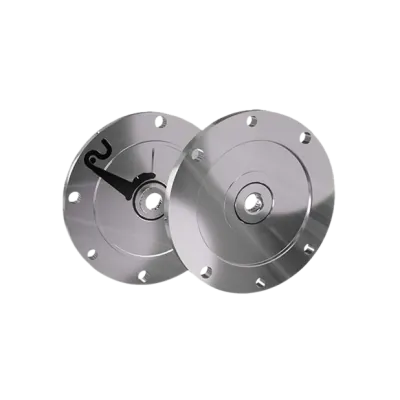

BEGE flange encoder MNV2A-120-19-102470, 1024 pulses, 10m cable, stainless steel
HV500515The MIG SS flange encoder with 120mm flange from BEGE is a highly reliable and robust solution designed specifically for demanding environments, such as food production and the marine industry. With its compact size, dustproof construction, and resistance to shocks and water, this encoder ensures accurate and precise measurements even in the harsh conditions.
Specifications
Product description
Downloads
€559.41
Made to order
Expected shipment: 16-01-2025
More Information
IP classification
IP 55
Pulses
1024
Outer diameter (mm)
Ø120
Flange thickness (mm)
7
Material
Stainless steel
Cable length (m)
10
Shaft diameter (mm)
Ø19
BCD norm
100
Description
Key features:
- Universal compatibility: Fits seamlessly onto every IEC standard electric motor.
- Stable contactless signal measurement: Utilizes advanced technology to deliver consistent and precise signal measurement without physical contact.
- Complete protection: Offers protection against dirt, liquids, and corrosion, making it suitable for use in hygienic or corrosive environments.
- High-pressure cleaning resistance: Withstands high-pressure cleaning procedures.
- IP Classification: Standard IP55 rating, with the potential for an upgrade to IP67 is feasible, contingent on the chosen sealant between the motor and machine flange.
Specifications:
- For motor size: B14
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Crafted from stainless steel.
- Hub: Made from stainless steel.
