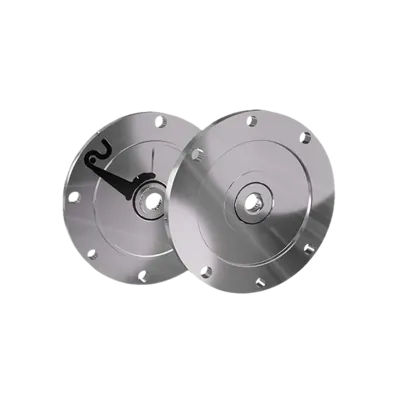

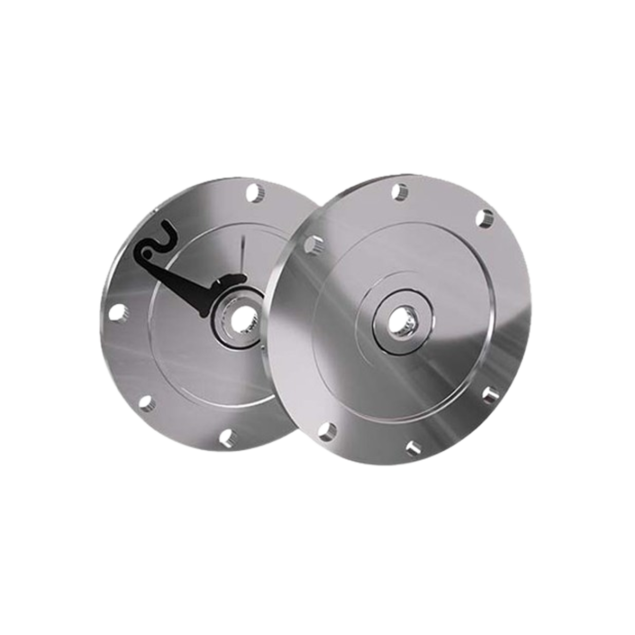

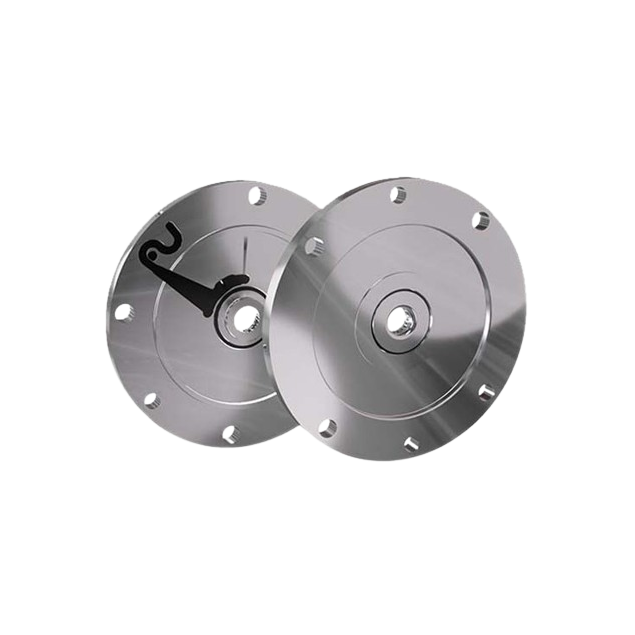

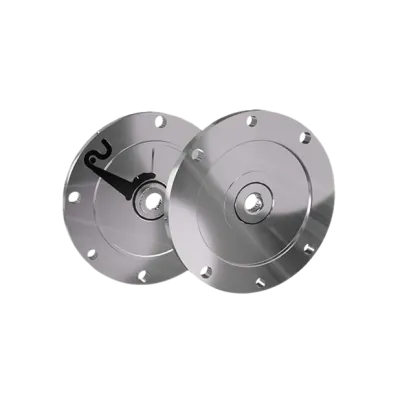

BEGE flange encoder MNV2A-120-19-102470, 1024 pulses, 100m cable, stainless steel
HV500516The MIG SS flangeencoder from BEGE, is engineered with a 120mm flange, designed to excel in demanding environments. This compact and robust encoder is crafted to withstand the rigors of hygienic or corrosive settings, making it the ideal choice for industries such as food production and marine applications.
Specifications
Product description
Downloads
€1,821.16
Made to order
Expected shipment: 16-01-2025
More Information
IP classification
IP 55
Pulses
1024
Outer diameter (mm)
Ø120
Flange thickness (mm)
7
Material
Stainless steel
Cable length (m)
100
Shaft diameter (mm)
Ø19
BCD norm
100
Description
Key features:
- Universal compatibility: Compatible with every IEC standard electric motor..
- Contactless signal measurement: Offers highly stable and reliable signal measurement.
- Ultimate protection: Built to withstand harsh conditions, the MIG encoder is fully dustproof, shock-resistant, and water-resistant, safeguarding against dirt, liquids, and corrosion. It is also designed to withstand high-pressure cleaning, ensuring longevity and consistent performance.
- IP Classification: IP rating at IP55; the possibility of upgrading to IP67 is attainable depending on the chosen sealant between the motor and machine flange.
Specifications:
- For motor size: B14
- Temperature range: -30°C to +80°C
Materials:
- Flange: Constructed from stainless steel.
- Hub: Crafted from stainless steel.
