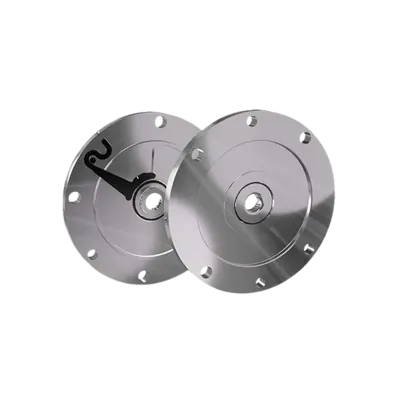

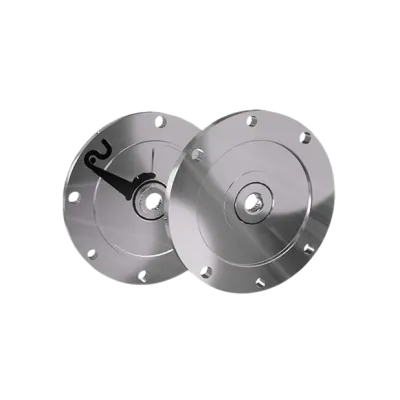

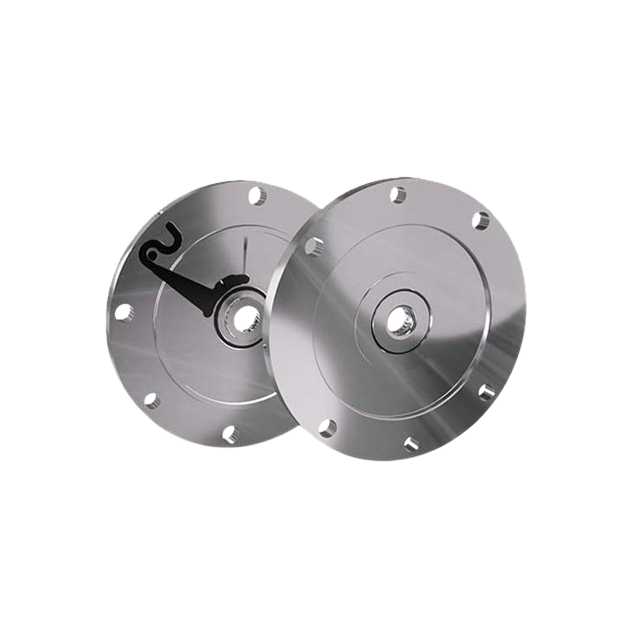

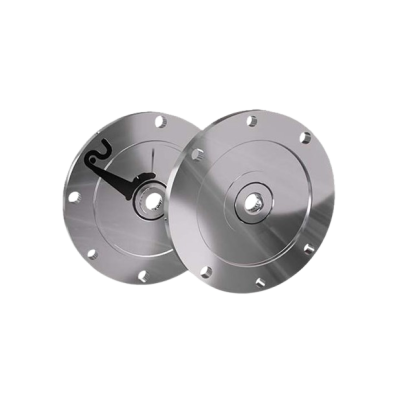

BEGE flange encoder MNV2A-105-14-05127, 512 pulses, 2m cable, stainless steel
HV500518The MIG SS flange encoder from BEGE, featuring a 105mm flange. This encoder is built to withstand challenging conditions in hygienic or corrosive environments, making it ideal for applications in the food production and marine industry.
Specifications
Product description
Downloads
€488.61
Made to order
Expected shipment: 31-01-2025
More Information
IP classification
IP 55
Pulses
512
Outer diameter (mm)
Ø105
Flange thickness (mm)
7
Material
Stainless steel
Cable length (m)
2
Shaft diameter (mm)
Ø14
BCD norm
85
Description
Key features:
- Universal compatibility: Fits on a IEC standard electric motor.
- Reliable signal measurement: Utilizes stable contactless technology for accurate signal measurement, ensuring dependable performance.
- Robust protection: Offers complete protection against dirt, liquids, and corrosion, making it suitable for harsh environments.
- High-pressure cleaning resistance: Withstands high-pressure cleaning processes.
- IP Rating: Standard classification at IP55; the option for an upgrade to IP67 is attainable, contingent on the chosen sealant between the motor and machine flange.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Constructed from stainless steel.
- Hub: Made from stainless steel.
