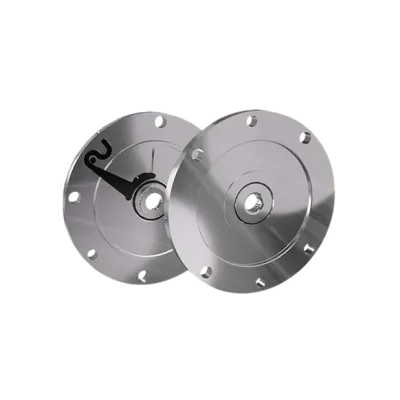

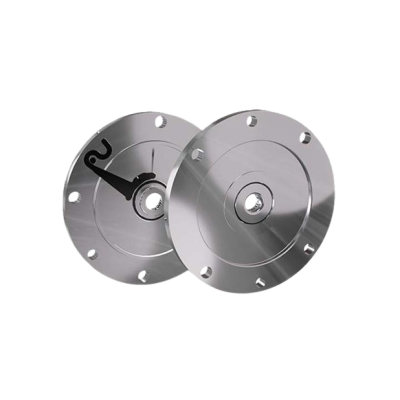

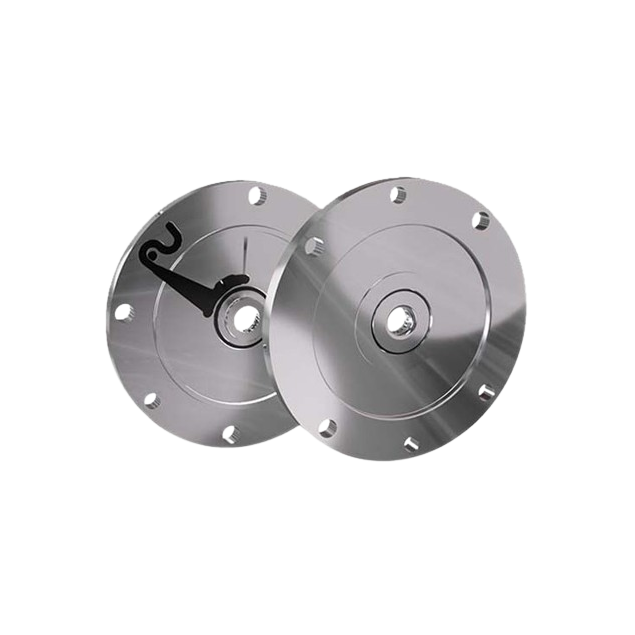

BEGE flange encoder MNV2A-105-14-102457, 1024 pulses, 5m cable, stainless steel
HV500514The MIG SS flange encoder by BEGE is a compact and robust device specifically engineered for applications in hygienic or corrosive environments, such as the food production and marine industries. This stainless steel encoder combines durability and advanced features, making it the optimal solution for high-precision requirements.
Specifications
Product description
Downloads
€509.38
Made to order
Expected shipment: 05-03-2025
More Information
IP classification
IP 55
Pulses
1024
Outer diameter (mm)
Ø105
Flange thickness (mm)
7
Material
Stainless steel
Cable length (m)
5
Shaft diameter (mm)
Ø14
BCD norm
85
Description
Key features:
- Universal compatibility: The MIG SS encoder is designed to seamlessly fit on every IEC standard electric motor, ensuring easy integration into various motor systems.
- Stable contactless signal measurement: With stable contactless signal measurement, this encoder delivers reliable and precise measurements.
- Complete protection: The MIG SS is fully protected against dirt, liquid, and corrosion, making it an ideal choice for challenging environments. It offers resistance to high-pressure cleaning.
- IP Rating: With IP55 classification, there's an option for an upgrade to IP67, contingent on the chosen sealant between the motor and machine flange.
Specifications:
- For motor size: B14.
- Temperature range: From -30°C to +80°C.
Materials:
- Flange: The flange of the MIG SS encoder is constructed from stainless steel.
- Hub: The hub is made from stainless steel.
