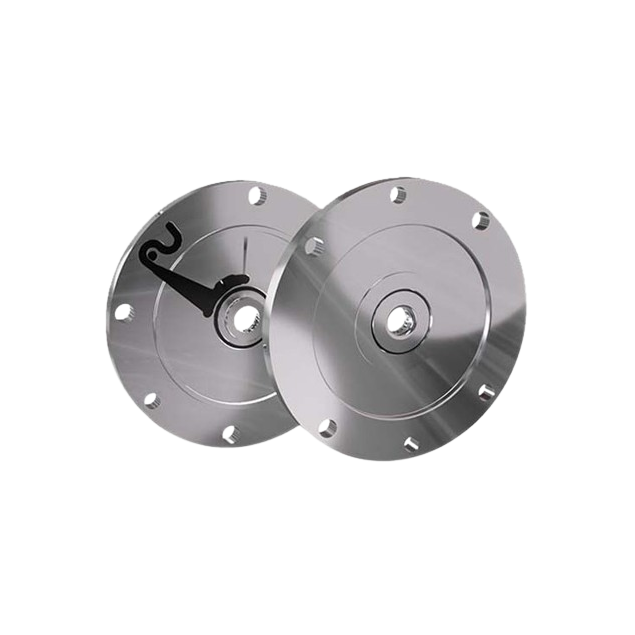

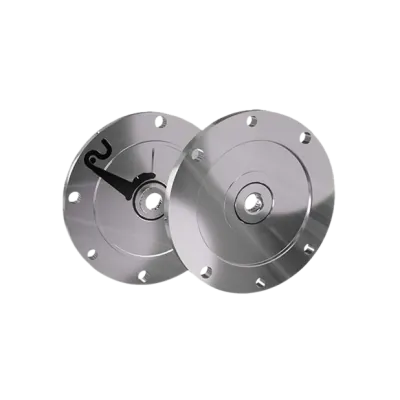

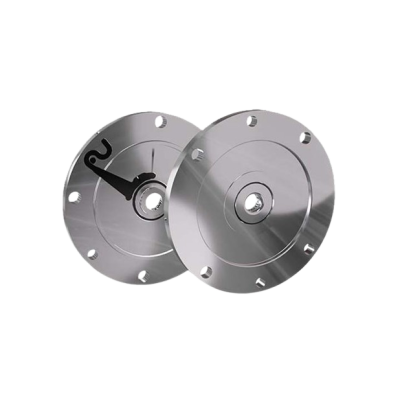

BEGE flange encoder MNV2A-105-14-10247, 1024 pulses, 2m cable, stainless steel

HV500500

The BEGE flange encoder MNV2A-105-14-10247 delivers 1024 pulses per revolution, ensuring precise feedback for positioning and speed control in advanced automation systems. Built for IEC 71B14 motors, this encoder features a Ø14 mm solid shaft, a Ø105 mm outer diameter, and a 7 mm flange thickness, mounted with a 85 mm bolt circle (BCD). The stainless steel housing provides high resistance to corrosion and is ideal for hygiene-sensitive and demanding environments. A 2.0 m cable is included for seamless integration.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Pulses

1024

Outer diameter (mm)

Ø105

Flange thickness (mm)

Material

Stainless steel

Cable length (m)

Shaft diameter (mm)

Ø14

IEC norm

71B14

BCD norm

HS-Code

90292038.000000

Description

Key Features:

Compatibility: Designed to fit on s IEC standard electric motor.
Stable signal measurement: Utilizes advanced contactless signal measurement technology, ensuring precise and reliable feedback for optimal performance.
Complete protection: Built to withstand harsh environments, this encoder is completely protected against dirt, liquids, and corrosion.
High-pressure cleaning: Offers protection against high-pressure cleaning, allowing for thorough cleaning without compromising performance.
IP Classification: Standard rating is IP55, with the possibility of upgrading to IP67 based on the chosen sealant between the motor and machine flange.

Specifications:
