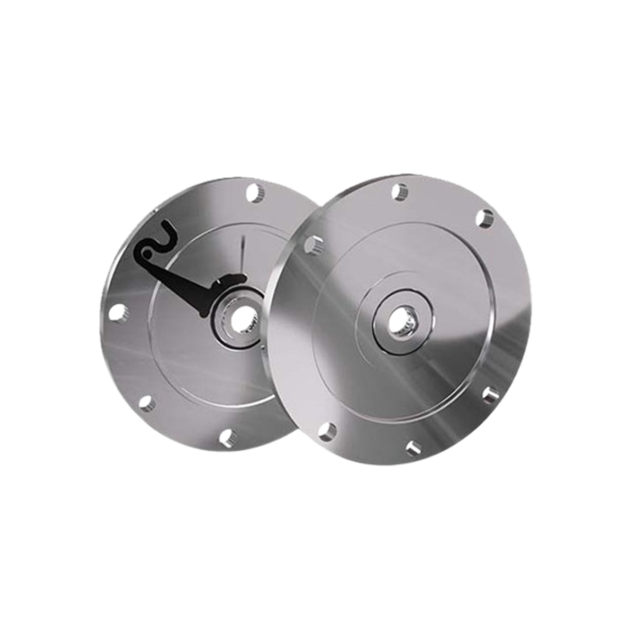

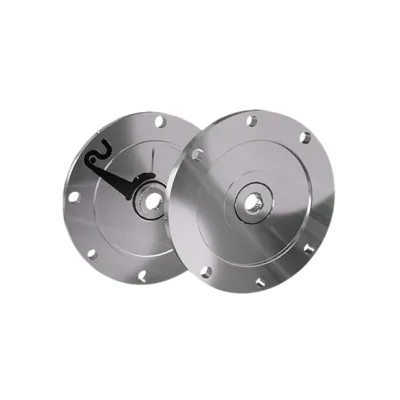

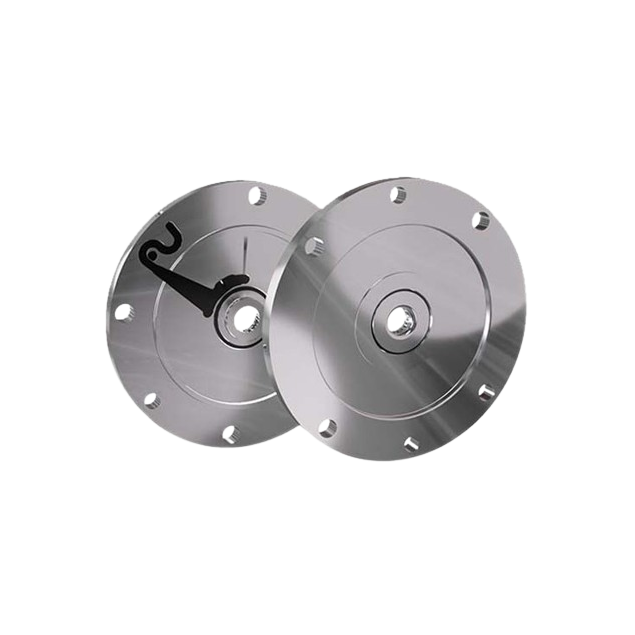

BEGE flange encoder MNV2A-105-14-005070, 1024 pulses, 10m cable, stainless steel
HV500512The BEGE MIG SS encoder with flange 105mm, for precision measurement in hygienic and corrosive environments. This compact and robust encoder is built to withstand even the harshest conditions, making it ideal for applications in the food production and marine industry.
Specifications
Product description
Downloads
€544.52
Made to order
Expected shipment: 16-01-2025
More Information
IP classification
IP 55
Pulses
1024
Outer diameter (mm)
Ø105
Flange thickness (mm)
7
Material
Stainless steel
Cable length (m)
10
Shaft diameter (mm)
Ø14
BCD norm
85
Description
Key features:
- Fits on every IEC standard electric motor, ensuring compatibility and ease of installation.
- Stable contactless signal measurement guarantees accurate and reliable results.
- Complete protection against dirt, liquid, and corrosion, ensuring longevity and performance.
- Equipped to withstand high-pressure cleaning for effortless maintenance.
- Standard IP classification at IP55; the possibility of upgrading to IP67 is attainable, contingent on the chosen sealant between the motor and machine flange.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C
Materials:
- Flange: Crafted from stainless steel.
- Hub: Made from stainless steel.
