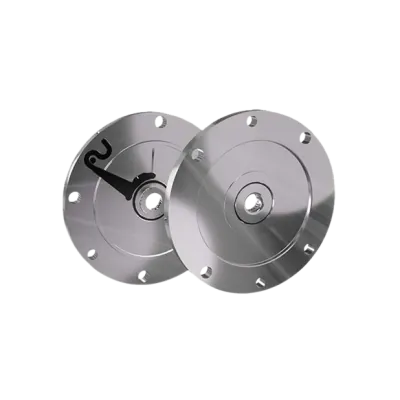

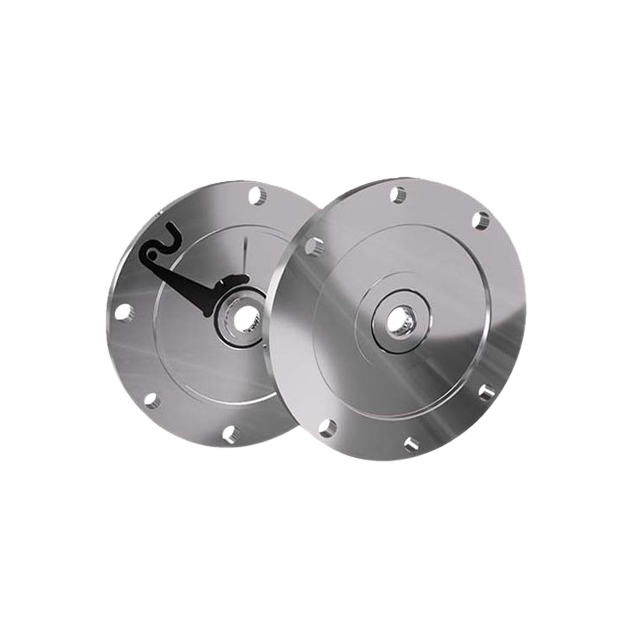

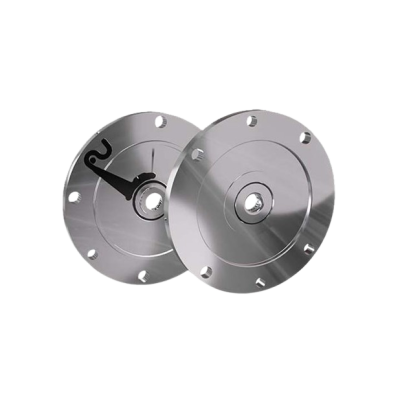

BEGE flange encoder MNV2A-105-14-000172, 1 pulses, 20m cable, stainless steel
HV500517The BEGE flange encoder MNV2A-105-14-000172 is a rugged incremental encoder with 1 pulse per revolution, optimized for simple position reference or zero-point detection in industrial applications. Designed for IEC 71B14 motors, it includes a Ø14 mm solid shaft, Ø105 mm outer diameter, and 9 mm flange thickness, mounted via an 85 mm bolt circle (BCD). The IP55-rated stainless steel housing offers high resistance to corrosion, making it ideal for harsh or hygienic environments. Comes with a 20.0 m cable for extended installations.
Made to order
Expected shipment:
More Information
Description
Key features:
- Universal compatibility: Fits seamlessly on every IEC standard electric motor.
- Contactless signal measurement: Utilizes advanced technology for stable and accurate signal measurement.
- Complete protection: Designed to withstand dust, water, and shocks, ensuring optimal performance even in harsh operating environments.
- High-pressure cleaning resistance: Provides protection against high-pressure cleaning processes.
- IP classification: Standard rating at IP55; the possibility of an upgrade to IP67 is attainable depending on the chosen sealant between the motor and machine flange.
Specifications:
- For motor size: B14
- Temperature range: -30°C to +80°C
Materials:
- Flange: Constructed from stainless steel.
- Hub: Made from stainless steel.
