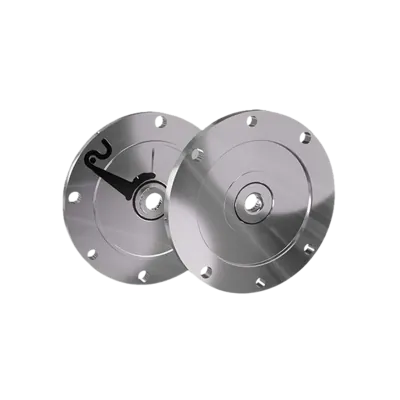

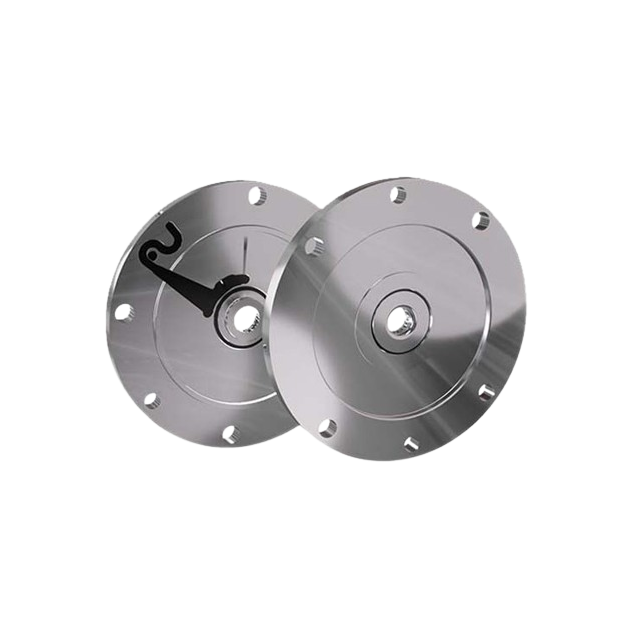

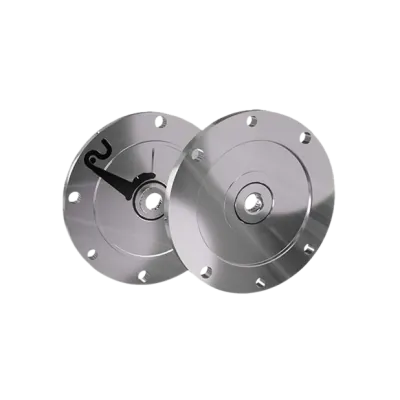

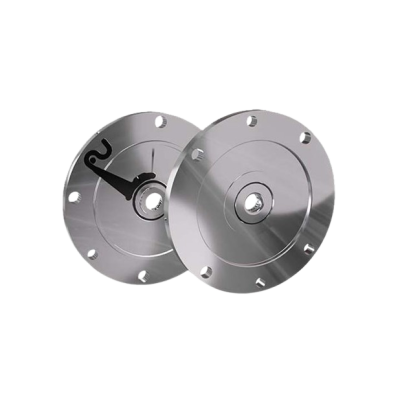

BEGE flange encoder MNV2A-090-11-00087, 2m cable, 8 pulses, stainless steel

HV500430

The BEGE flange encoder MNV2A-090-11-00087 is a robust incremental encoder with 8 pulses per revolution, designed for reliable signal feedback in basic automation tasks. Built for IEC 63B14 motors, it features a Ø11 mm solid shaft, Ø90 mm outer diameter, and 7 mm flange thickness, with a 75 mm bolt circle (BCD). The standout feature is its stainless steel housing, providing excellent resistance to corrosion, ideal for food, pharma, or harsh environments. A 2.0 m cable is included for quick installation.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Pulses

Outer diameter (mm)

Ø90

Flange thickness (mm)

Material

Stainless steel

Cable length (m)

Shaft diameter (mm)

Ø11

IEC norm

63B14

BCD norm

Description

Key Features:

Flange design: The 90mm flange seamlessly fits on every IEC standard electric motor, providing integration into existing systems.
Contactless signal measurement: The encoder utilizes a highly stable and contactless signal measurement system, ensuring accurate and reliable data capture.
Dustproof and water-resistant: Built to withstand harsh conditions, the MIG SS encoder is fully protected against dirt, liquids, and corrosion, ensuring optimal functionality even in challenging environments.
High-pressure cleaning protection: With protection against high-pressure cleaning, this encoder remains unscathed, maintaining its performance integrity.
IP Classification: Standard rating is IP55; there's an option for an upgrade to IP67, dependent on the chosen sealant between the motor and machine flange.

Specifications:
