BEGE flange encoder MNV2A-090-11-10247, 1024, 2m cable, stainless steel

HV500490

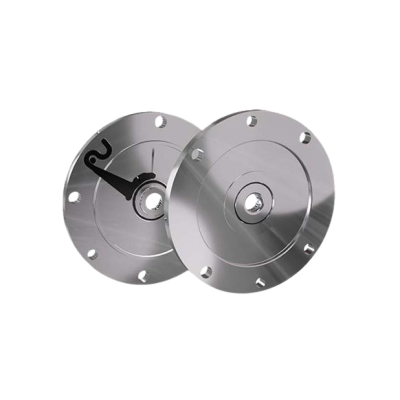

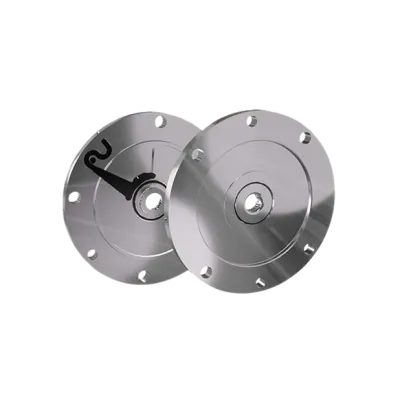

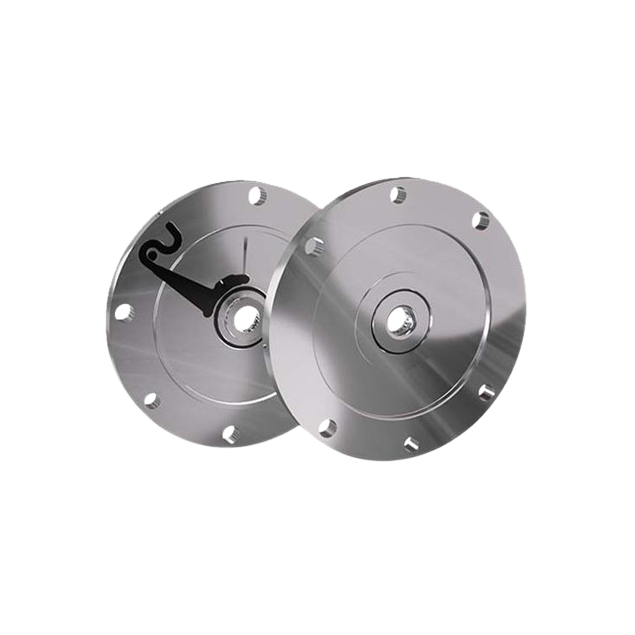

The BEGE flange encoder MNV2A-090-11-10247 provides 1024 pulses per revolution, delivering high-resolution feedback for precise motion control and positioning. It is designed for IEC 63B14 motors, featuring a Ø11 mm solid shaft, a Ø90 mm outer diameter, and a 7 mm flange thickness, mounted via a 75 mm bolt circle (BCD). Its stainless steel housing offers superior corrosion resistance, making it ideal for food, pharmaceutical, and washdown environments. Supplied with a 2.0 m cable for easy integration.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Pulses

1024

Outer diameter (mm)

Ø90

Flange thickness (mm)

Material

Stainless steel

Cable length (m)

Shaft diameter (mm)

Ø11

IEC norm

63B14

BCD norm

HS-Code

90292038.000000

Description

Key features:

Flawless compatibility: Designed to fit on a IEC standard electric motor.
Contactless signal measurement: Utilizes advanced technology for stable and accurate signal detection without any physical contact.
Protection: Dustproof, shock-resistant, and fully water-resistant, this encoder is built to withstand even the tough operating conditions.
High-pressure cleaning ready: With protection against high-pressure cleaning, the encoder remains unaffected.
IP classification: Rating of IP55, with a possibility for an upgrade to IP67 based on the chosen sealant between the motor and machine flange.

Specifications:
