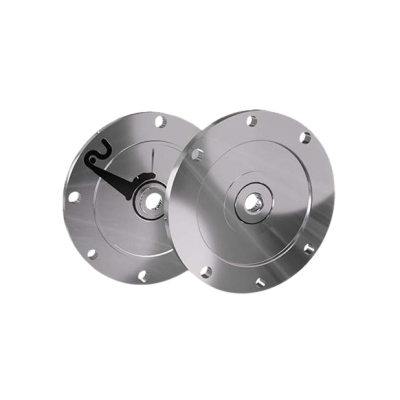

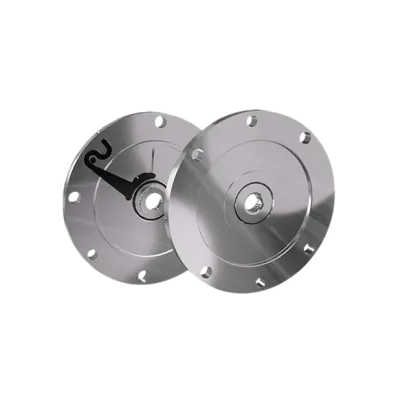

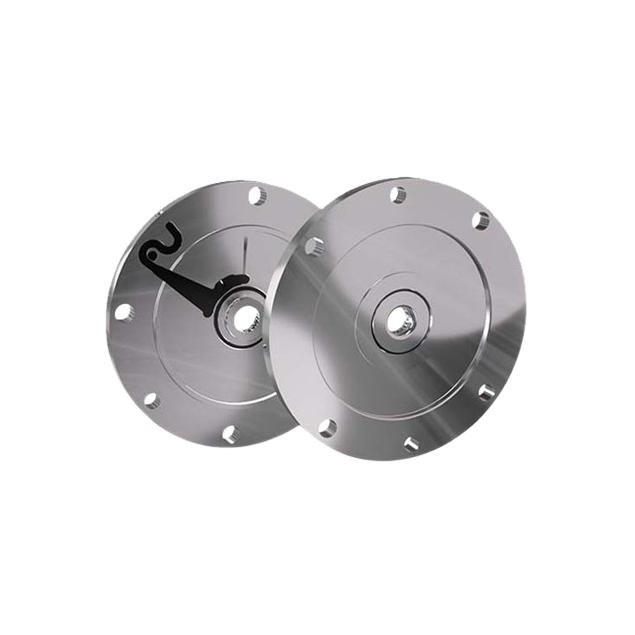

BEGE flange encoder MNV2A-105-14-005075, 50 pulses, 5m cable, stainless steel
HV500511The BEGE flange encoder MNV2A-105-14-005075 is a robust stainless steel encoder designed for reliable speed and position feedback in industrial applications. With 50 pulses per revolution, a shaft diameter of Ø14 mm, and a 5 m pre-assembled cable, it ensures accurate signal transmission for automation and control systems.
The encoder has an outer diameter of Ø105 mm and a flange thickness of 7 mm, built to the IEC 71B14 standard with BCD 85 mm, ensuring seamless integration with IEC-compliant motors and gear units. Constructed from stainless steel, it provides durability and corrosion resistance, making it suitable for harsh environments.
Manufactured by BEGE Power Transmission, a Dutch company with more than 70 years of experience in drive technology, this encoder reflects BEGE’s reputation for reliable, precise, and efficient solutions. Their products are trusted across industries such as food processing, logistics, packaging, and heavy industry, where robustness and accuracy are essential.
Rated to IP55 protection, the unit is safeguarded against dust and water jets, ensuring dependable performance in demanding conditions.
Made to order
Expected shipment:
More Information
Description
Key features:
- Universal compatibility: Fits on every IEC standard electric motor, ensuring easy integration into existing systems.
- Contactless signal measurement: Provides stable and reliable signal measurement without physical contact, ensuring accurate readings.
- Robust protection: Offers protection against dust, liquids, and corrosion, guaranteeing longevity and reliable performance.
- Waterproof and shockproof: With full shock and water resistance, this encoder can withstand rigorous cleaning processes and challenging operating conditions.
- High-pressure cleaning: Suited for environments requiring high-pressure cleaning.
- IP Classification: Standard at IP55; the option for an upgrade to IP67 is attainable, contingent on the chosen sealant between the motor and machine flange.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Constructed from stainless steel.
- Hub: Made from durable stainless steel.
