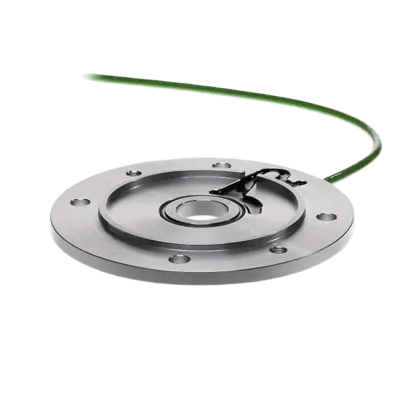

BEGE flange encoder MN-090-11-00087, 8 pulses, 10m cable, aluminium
HV500041The MIG NOVA+ flange encoder from BEGE, is a solution for precision measurement in environments that demand uncompromising hygiene. This compact and rugged encoder is designed to withstand dust, shocks, and water.
Specifications
Product description
Downloads
€488.07
Made to order
Expected shipment: 06-01-2025
More Information
IP classification
IP 55
Pulses
8
Outer diameter (mm)
Ø90
Flange thickness (mm)
7
Material
Aluminium
Cable length (m)
10
Shaft diameter (mm)
Ø11
BCD norm
75
Description
Key features:
- Magnetic rotary encoder for accurate and reliable signal measurement.
- Signal quality and processing for precise data acquisition.
- Universal compatibility with IEC standard electric motors, ensuring seamless integration.
- Contactless signal measurement technology ensures long-term stability and durability.
- With standard IP55, that can be raised to IP67 depending on the sealant applied between the motor and machine flange.
- No extended fan cover required, thanks to the innovative design of the intermediate flange.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Made from aluminum.
- Hub: Constructed from stainless steel.
