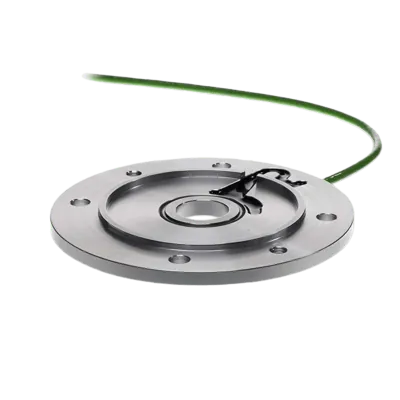

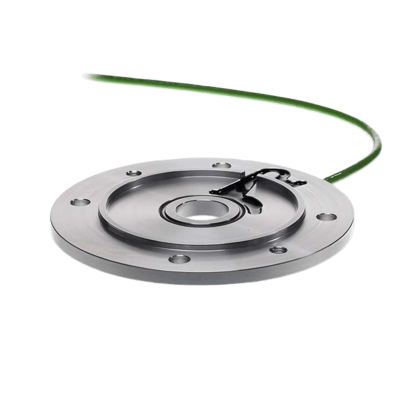

BEGE flange encoder MN 090-11-0025720, 25 pulses, 20m cable, aluminium
HV500391BEGE MIG NOVA+ flange encoder 90-11, 25 pulses, 20m cable is a magnetic incremental encoder that fits between the motor and the gearbox of an industrial machine. It is used for ultra-precise positioning and speed feedback in automation systems. It is compatible with almost all controls (HTL and TTL) and has a high signal quality. It is compact, dustproof, shockproof and water-resistant (IP67). It adds only 7 mm to the total length of the drive and does not require any motor adjustments. It has a vulcanized magnet ring that is robust and durable.
In stock
Expected shipment: 27-12-2024
More Information
Description
Key features:
- Magnetic rotary encoder for exceptional signal quality.
- High-quality processing ensures reliable performance.
- Compatible with IEC standard electric motors, offering versatility.
- Stable and contactless signal measurement for precise readings.
- Rated IP55, with the potential to reach IP67 when utilizing suitable sealant between the motor and machine flange.
- No extended fan cover required with this intermediate flange design.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Crafted from sturdy aluminium.
- Hub: Constructed with durable stainless steel.
