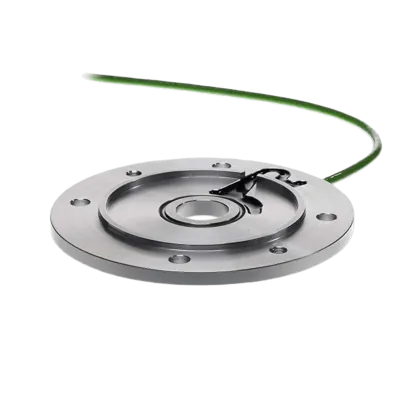

BEGE flange encoder MN-090-11-1607, 160 pulses, 2m cable, aluminium
HV500385The BEGE flange encoder MN-090-11-1607 is a precise incremental encoder with 160 pulses per revolution, optimized for high-resolution motion detection. Designed for IEC 63B14 motors, it features a Ø11 mm solid shaft, Ø90 mm outer diameter, and a 7 mm flange thickness, mounted via a 75 mm bolt circle (BCD). The IP55-rated aluminium housing ensures resistance to dust and splashing water, and the encoder comes with a 2.0 m cable for direct integration in automation environments.
Made to order
Expected shipment:
More Information
Description
Key features:
- Magnetic rotary encoder for accurate and reliable signal detection.
- High signal quality and high-quality processing for precise measurements.
- Universally compatible with IEC standard electric motors for seamless integration.
- Stable contactless signal measurement for improved durability and longevity.
- IP55 by default, but can be upgraded to IP67 with sealant between motor and machine flange.
- Intermediate flange design eliminates the need for an extended fan cover.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Crafted from durable aluminium.
- Hub: Constructed from sturdy stainless steel.
