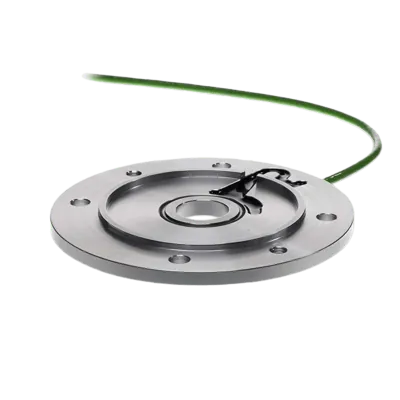

BEGE flange encoder MN-200-24-00649, 64 pulses, 2m cable, aluminium

HV500321

The BEGE flange encoder MN-200-24-00649 is a durable incremental encoder delivering 64 pulses per revolution, ideal for moderate-resolution feedback in industrial drives. Tailored for IEC 90B5 motors, it features a Ø24 mm solid shaft, Ø200 mm outer diameter, and a 9 mm flange thickness, mounted on a 165 mm bolt circle (BCD). The aluminium housing is rated IP55, ensuring resistance to dust and splashes. A 2.0 m cable is included for direct connection to control systems.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 55

Pulses

Outer diameter (mm)

Ø200

Flange thickness (mm)

Material

Aluminium

Cable length (m)

Shaft diameter (mm)

Ø24

IEC norm

90B5

BCD norm

165

HS-Code

90292038.000000

Description

Key features:

Magnetic rotary encoder technology ensures accurate and reliable signal measurement.
High signal quality and precise processing for reliable performance.
Compatible with all IEC standard electric motors, providing versatility and ease of integration.
Stable contactless signal measurement for improved durability and longevity.
Standardly IP55 rated, but can be upgraded to IP67 by applying appropriate sealant between the motor and machine flange.
No need for an extended fan cover due to the unique design of the intermediate flange.
