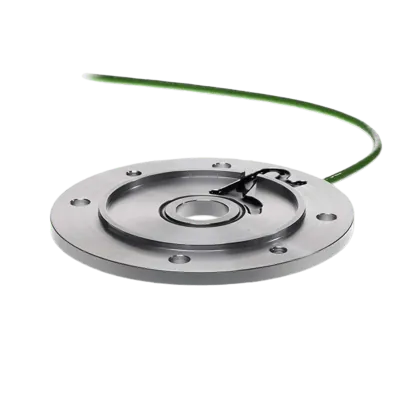

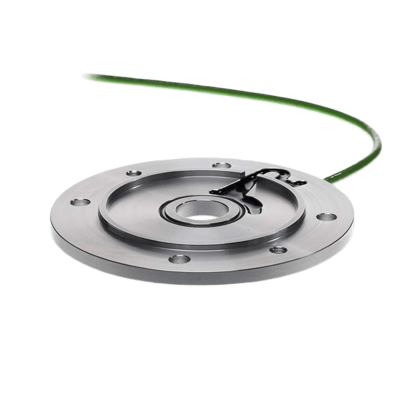

BEGE flange encoder MN-160-28-96, 96 pulses, 2m cable, aluminium

HV500427

BEGE MIG NOVA+ flange encoder, is a product that allows for precise positioning of electric motors and other machines. It is a magnetic rotary encoder that fits on every IEC standard electric motor and has a high signal quality and durability. It is compatible with HTL and TTL interfaces and has 96 pulses per rotation. It is dustproof, water-resistant and corrosion-resistant. It has a flange diameter of 160mm, a shaft diameter of 28mm and a cable length of 2m.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment: 14-02-2025

More Information

IP classification

IP 55

Pulses

Outer diameter (mm)

Ø160

Flange thickness (mm)

Material

Aluminium

Cable length (m)

Shaft diameter (mm)

Ø28

BCD norm

130

Mounting

B14

Description

Key features:

Magnetic rotary encoder: Provides accurate and reliable signal measurement for precise positioning.
High signal quality: Delivers clear and consistent signals for optimal performance.
Universal compatibility: Designed to fit seamlessly on every IEC standard electric motor, ensuring versatility across applications.
Contactless signal measurement: Ensures stability and longevity by eliminating physical wear and tear associated with contact-based encoders.
The encoder is IP55 rated, but achieves IP67 when positioned between the motor and machine flange.
Streamlined design: The intermediate flange eliminates the need for an extended fan cover, simplifying installation and maintenance.

Specifications:
