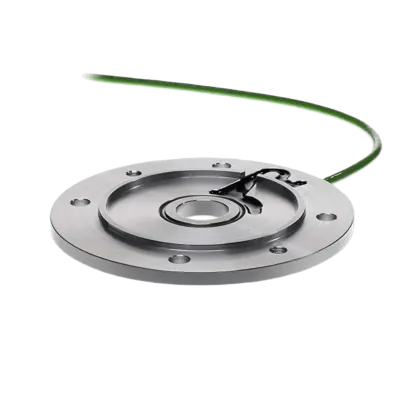

BEGE flange encoder MN-140-24-00509, 50 pulses, 2m cable, aluminium
HV500270The MIG NOVA+ flange encoder from BEGE, is a solution for precision signal measurement in environments where hygiene is paramount. With its compact design, dustproof construction, and resistance to shock and water, this flange encoder is built to excel in demanding conditions.
Specifications
Product description
Downloads
€292.62
Made to order
Expected shipment: 13-01-2025
More Information
IP classification
IP 55
Pulses
50
Outer diameter (mm)
Ø140
Flange thickness (mm)
9
Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
Ø24
BCD norm
115
Description
Key Features:
- Magnetic rotary encoder for precise signal measurement.
- High signal quality and high-quality processing for accurate results.
- Compatible with IEC standard electric motors, ensuring versatile integration.
- Stable contactless signal measurement for reliable performance.
- The standard rating is IP55, but it can be elevated to IP67 based on the sealant used between the motor and machine flange.
- Intermediate flange design eliminates the need for an extended fan cover.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Made from durable aluminum.
- Hub: Constructed with stainless steel.
