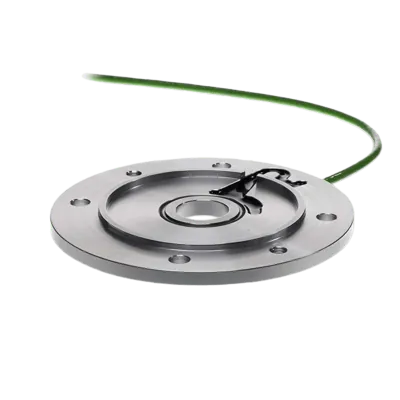

BEGE flange encoder MN-140-24-00329, 32 pulses, 5m cable, aluminium
HV500266The MIG NOVA+ flange encoder from BEGE, designed with precision and reliability in mind. This compact and robust encoder is built to withstand harsh environments, making it an ideal choice where hygiene is of importance.
Specifications
Product description
Downloads
€313.76
Made to order
Expected shipment: 06-01-2025
More Information
IP classification
IP 55
Pulses
32
Outer diameter (mm)
Ø140
Flange thickness (mm)
9
Material
Aluminium
Cable length (m)
5
Shaft diameter (mm)
Ø24
BCD norm
115
Description
Key features:
- Magnetic rotary encoder for accurate and reliable signal measurement.
- High signal quality and processing for precise results.
- Compatible with IEC standard electric motors, ensuring a universal fit.
- Stable contactless signal measurement for consistent performance.
- The standard rating is IP55, but with the right sealant, it can reach IP67 between the motor and machine flange.
- No extended fan cover required due to the innovative intermediate flange design.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Made from aluminium.
- Hub: Constructed from stainless steel.
