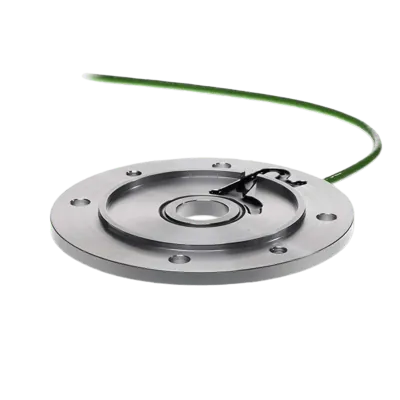

BEGE flange encoder MN-140-24-1024, 1024 pulses, 5m cable, aluminium
HV500426The BEGE MIG NOVA+ flange encoder 140-24, 5m cable is a magnetic rotary encoder that fits on any IEC standard electric motor and provides high signal quality and accuracy for positioning tasks. It is compatible with virtually all controls (HTL and TTL) and has a protection class of IP67, making it suitable for environments where hygiene is very important. It has 1024 pulses per rotation and a maximum speed of 3000RPM.
In stock
Expected shipment: 24-02-2025
More Information
Description
Key features:
- Magnetic rotary encoder: Provides accurate and reliable signal measurement for precise positioning.
- High signal quality: Delivers performance with consistently high-quality signals.
- Universal compatibility: Compatible with all IEC standard electric motors, ensuring seamless integration.
- Contactless signal measurement: Enables stable and reliable measurements without physical contact.
- The flange encoder is IP55 rated, but when positioned between the motor and machine flange, it achieves an IP67 rating.
-
Intermediate flange design: Eliminates the need for an extended fan cover, simplifying installation.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Crafted from aluminum.
- Hub: Made from stainless steel.
