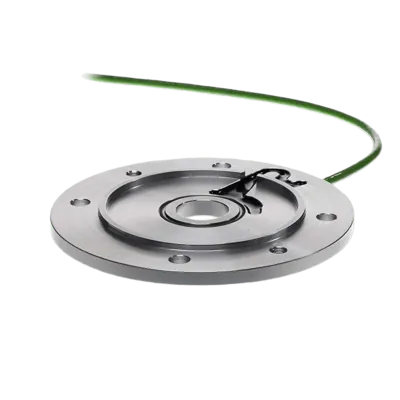

BEGE flange encoder MN-140-24-10249, 128 pulses, 2m cable, aluminium
HV500413BEGE MIG NOVA+ flangeencoder is a incremental encoder that can measure the rotation of a shaft and provide precise position feedback. It is compatible with IEC standard electric motors and can be easily installed between the motor and the gearbox. It has a flange diameter of 140 mm, a shaft diameter of 14 mm, and a cable length of 2 meters. It can produce 128 pulses per rotation and operates with a voltage range of 5-24 V DC. It is suitable for applications that require high accuracy, hygiene, and durability.
Made to order
Expected shipment: 21-03-2025
More Information
Description
Key features:
- Magnetic rotary encoder for precise signal measurement.
- High signal quality and high-quality processing.
- Compatible with IEC standard electric motors.
- Stable contactless signal measurement for reliable performance.
- The flange encoder, rated IP55, attains an IP67 rating when installed between the motor and machine flange.
-
Intermediate flange design eliminates the need for an extended fan cover.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Made from durable aluminium.
- Hub: Crafted from stainless steel.
