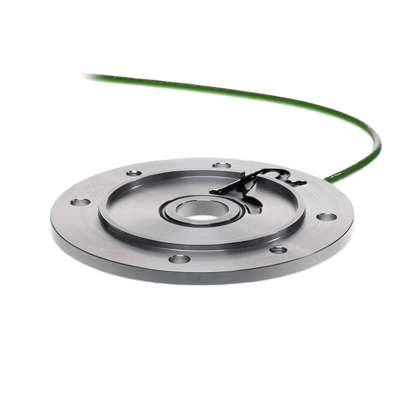

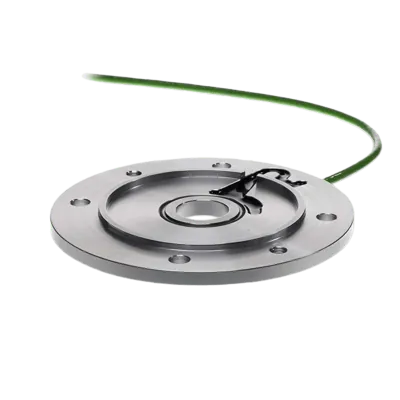

BEGE flange encoder MN-120-19-00107, 10 pulses, 2m cable, aluminium
HV500180The BEGE flange encoder MN-120-19-00107 is a robust incremental encoder with 10 pulses per revolution, providing basic feedback for low-resolution motion control and monitoring tasks. Designed for IEC 80B14 motors, it includes a Ø19 mm solid shaft, Ø120 mm outer diameter, and a 7 mm flange thickness, secured via a 100 mm bolt circle (BCD). Its IP55-rated aluminium housing offers dependable protection in industrial environments, and the integrated 2.0 m cable facilitates easy electrical connection.
Made to order
Expected shipment:
More Information
Description
Key features:
- Magnetic rotary encoder: Ensures accurate and precise measurements.
- High signal quality: Provides reliable and consistent data for optimal performance.
- Fits IEC standard electric motors: Compatible with a wide range of motors, ensuring versatility.
- Stable contactless signal measurement: Ensures durability and longevity of the device.
- The standard IP55 rating can be enhanced to IP67 with the appropriate sealant applied between the motor and machine flange.
-
Intermediate flange: Eliminates the need for an extended fan cover, simplifying installation and maintenance.
Specifications:
- For motor size: B14
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Constructed from durable and lightweight aluminum, ensuring strength and longevity.
- Hub: Made from stainless steel, providing corrosion resistance and structural stability.
