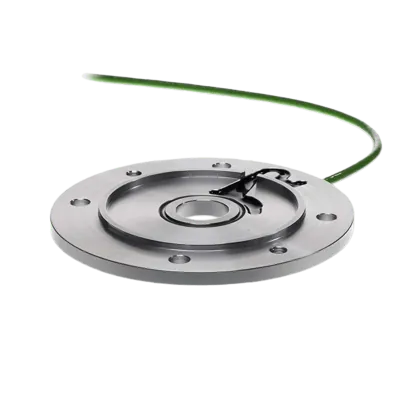

BEGE flange encoder MN-105-14-00207, 20 pulses, 5m cable, aluminium
HV500121The BEGE flange encoder MN-105-14-00207 is an incremental encoder delivering 20 pulses per revolution, engineered for reliable position and speed feedback in industrial automation systems. Designed for IEC 71B14 motor interfaces, it features a Ø14 mm solid shaft, a Ø105 mm outer diameter, and a 7 mm flange thickness, aligned to an 85 mm bolt circle (BCD). Its IP55-rated aluminium housing ensures dependable protection against dust and splashes, making it well-suited for demanding production environments. The encoder comes equipped with a 5.0 m cable for straightforward electrical integration, supporting flexible machine layouts. This makes it an excellent choice for applications that require consistent performance, robust mechanical design, and easy mounting to standard IEC motors.
In stock
Expected shipment:
More Information
Description
Key features:
- Magnetic rotary encoder: Ensures accurate and reliable signal measurement.
- High signal quality: Provides precise and consistent readings for enhanced performance.
- Wide compatibility: Fits seamlessly on any IEC standard electric motor.
- Contactless signal measurement: Offers stable and reliable operation without physical contact.
- IP rating: IP55 as standard, but it achieves an IP67 rating between the motor and machine flange when properly sealed.
-
Dustproof and shock/water-resistant: Suitable for demanding environments.
- Intermediate flange: No extended fan cover required, simplifying installation.
Specifications:
- For motorsize: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Constructed from durable aluminum.
- Hub: Made from stainless steel.
