BEGE flange encoder MN-105-14-00207, 20 pulses, 2m cable, aluminium

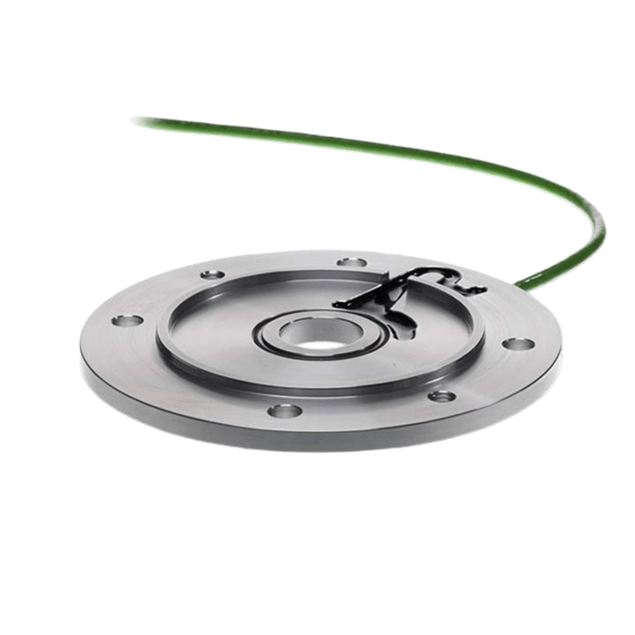

HV500120The MIG NOVA+ flange encoder by BEGE, is a solution for precision measurement in environments where hygiene is of importance. With its compact design and durability, this flange encoder is built to withstand even the harsh conditions.
Specifications
Product description
Downloads
€282.00
Made to order
Expected shipment: 21-03-2025
More Information
IP classification
IP 55
Pulses
20
Outer diameter (mm)
Ø105
Flange thickness (mm)
7
Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
Ø14
BCD norm
85
Description
Key features:
- Magnetic rotary encoder for accurate and reliable measurements.
- High signal quality and high-quality processing for precise data output.
- Compatible with IEC standard electric motors for seamless integration.
- Stable contactless signal measurement for enhanced performance.
- IP rating for the flange encoder is IP55 as standard, but it achieves an IP67 rating between the motor and machine flange when properly sealed.
- Intermediate flange design eliminates the need for an extended fan cover.
Specifications:
- For motorsize: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Made from aluminium.
- Hub: Constructed from stainless steel.
