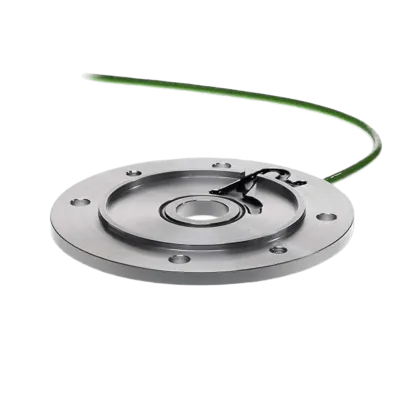

BEGE flange encoder MN-105-14-00027, 2 pulses, 2m cable, aluminium
HV500080The MIG NOVA+ flange encoder is a compact and robust solution designed for environments where hygiene is of importance. With its dustproof and fully shock and water-resistant construction, this encoder ensures reliable performance even in demanding conditions.
Specifications
Product description
Downloads
€282.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 55
Pulses
2
Outer diameter (mm)
Ø105
Flange thickness (mm)
7
Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
Ø14
BCD norm
85
Description
Key features:
- Magnetic rotary encoder for accurate and reliable signal measurement.
- High signal quality and precise signal processing.
- Compatible with all IEC standard electric motors for easy integration.
- Contactless signal measurement for enhanced stability.
- The flange encoder maintains a standard IP55 rating but can be upgraded to IP67 between the motor and machine flange with appropriate sealing.
-
Intermediate flange eliminates the need for an extended fan cover.
Specifications:
- For motor size: B14.
- Temperature range: -30°C to +80°C.
Materials:
- Flange: Made from durable and lightweight aluminum.
- Hub: Constructed from stainless steel.
