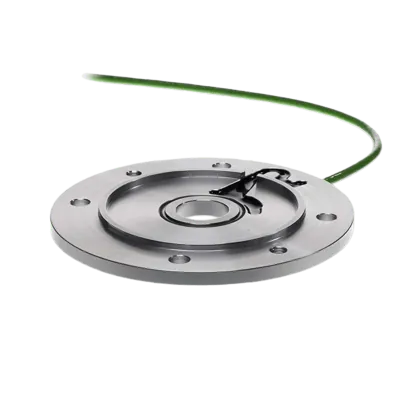

BEGE flange encoder MN-105-14-01607, 160 pulses, 2m cable, aluminium
HV500468The BEGE MIG NOVA+ flange encoder 105-14 with 2m cable, is a magnetic rotary encoder that fits on every IEC standard electric motor and provides high-quality signals for precise positioning. It is dustproof, water-resistant and corrosion-resistant. It has 160 pulses per rotation and can operate at temperatures from -30°C to +80°C.
Specifications
Product description
Downloads
€281.63
Made to order
Expected shipment: 14-02-2025
More Information
IP classification
IP 55
Pulses
160
Outer diameter (mm)
Ø105
Flange thickness (mm)
7
Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
Ø14
BCD norm
85
Mounting
B14
Description
Key features:
- Magnetic rotary encoder ensures accurate and reliable measurements
- Signal quality and high-quality processing for precise data output
- Compatible with all IEC standard electric motors, providing seamless integration
- Stable contactless signal measurement for enhanced performance
- Protection against dirt, liquid, and corrosion with an IP67 rating
- Eliminates the need for an extended fan cover with its intermediate flange design
Specifications:
- For motor size: B14
- Temperature range: -30°C to +80°C, allowing for operation in diverse environments
Materials:
- Flange: Crafted from aluminum
- Hub: Constructed with stainless steel
