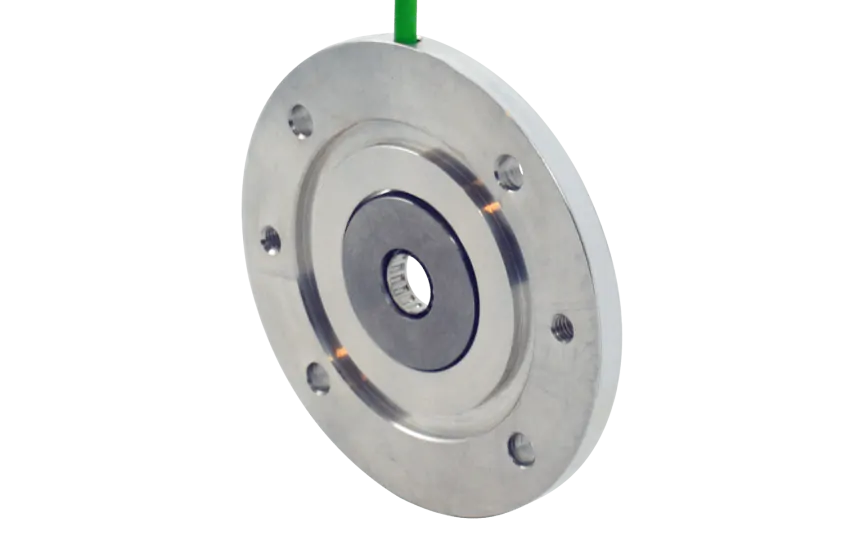

BEGE flange encoder MIG Nova+ MN-300-38-0512-12, 512 pulses, 20m cable, aluminium
HV52A30038051212020Flange outer diameter: 300mm Flange BCD: 265mm Shaft diameter: 38mm IEC norm: 132B5 Flange thickness: 12mm Input voltage: 5–24VDC Output signal: A90°B / A'90°B', HTL/TTL Pulses per channel per revolution: 512 Material: Aluminium Protection class: IP55 / IP67 Cable length: 20 meters This encoder is engineered for demanding automation environments requiring stable speed and position feedback.
Specifications
Product description
Downloads
€558.00
Made to order
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
300
Flange thickness (mm)
12
Encoder Material
Aluminium
Cable length (m)
20
Shaft diameter (mm)
38
IEC norm
132B5
BCD norm
265
Country of origin
NLD
HS-Code
90292038.000000
ERP net weight (Kg)
2.610000
Encoder supply
5-24VDC
Encoder signals
A90°B / A'90°B' HTL/TTL
Description
BEGE Power Transmission is a renowned Dutch manufacturer specializing in robust, high-performance industrial drive components, designed to optimize process reliability and efficiency in demanding automation environments. **Product Name: BEGE Flanged Encoder MIG Nova+ MN-300-38-0512-12**
**Key Features & Advantages**
• High-Resolution Incremental Encoder: Provides 512 pulses per revolution per channel for precise speed feedback and improved control accuracy in industrial automation systems. • Enhanced Signal Stability: Advanced electronics ensure reliable signal output with reduced noise, supporting consistent and stable performance in sensitive control applications. • HTL/TTL Output (A90°B / A'90°B'): Offers compatibility with both HTL and TTL industrial systems, increasing integration flexibility across various drive and control units. • Wide Voltage Range (5-24VDC): Accommodates diverse supply conditions, simplifying integration into modern and legacy installations. • Rugged Aluminium Construction: Solid aluminium housing ensures long-term durability and corrosion resistance in demanding industrial environments. • IP55/IP67 Protection: Provides excellent resistance to dust, moisture, and temporary immersion, extending product life and minimizing maintenance. • Large 300 mm Flange, 38 mm Shaft, and 20 m Cable: Facilitates installation on large industrial motors and systems, supporting flexible placement and minimizing signal loss over distance. • Flange and Shaft Compatibility: Designed for IEC 132B5 motors with a 265 mm bolt circle diameter, ensuring trouble-free retrofit or OEM integration. • Thick 12 mm Flange: Delivers enhanced mechanical stability and vibration resistance for demanding drive applications. **Application Areas**
• Automated production lines requiring precise motion control and feedback loops. • Conveyor systems for material handling in food, logistics, and packaging industries. • Robotics, textile, and woodworking machinery demanding high repetition accuracy and reliable operation. • Suitable for both standard and complex motion control installations across various manufacturing sectors. **Short Comparison to Other BEGE Encoder Types**
• MIG Basic: Standard incremental encoder for basic speed feedback in general automation tasks. • MIG Nova+: High-resolution incremental encoder for advanced motion control and superior precision. • MIG AST: Absolute encoder maintaining position data after power loss for precise positioning and sophisticated control systems.
**Key Features & Advantages**
• High-Resolution Incremental Encoder: Provides 512 pulses per revolution per channel for precise speed feedback and improved control accuracy in industrial automation systems. • Enhanced Signal Stability: Advanced electronics ensure reliable signal output with reduced noise, supporting consistent and stable performance in sensitive control applications. • HTL/TTL Output (A90°B / A'90°B'): Offers compatibility with both HTL and TTL industrial systems, increasing integration flexibility across various drive and control units. • Wide Voltage Range (5-24VDC): Accommodates diverse supply conditions, simplifying integration into modern and legacy installations. • Rugged Aluminium Construction: Solid aluminium housing ensures long-term durability and corrosion resistance in demanding industrial environments. • IP55/IP67 Protection: Provides excellent resistance to dust, moisture, and temporary immersion, extending product life and minimizing maintenance. • Large 300 mm Flange, 38 mm Shaft, and 20 m Cable: Facilitates installation on large industrial motors and systems, supporting flexible placement and minimizing signal loss over distance. • Flange and Shaft Compatibility: Designed for IEC 132B5 motors with a 265 mm bolt circle diameter, ensuring trouble-free retrofit or OEM integration. • Thick 12 mm Flange: Delivers enhanced mechanical stability and vibration resistance for demanding drive applications. **Application Areas**
• Automated production lines requiring precise motion control and feedback loops. • Conveyor systems for material handling in food, logistics, and packaging industries. • Robotics, textile, and woodworking machinery demanding high repetition accuracy and reliable operation. • Suitable for both standard and complex motion control installations across various manufacturing sectors. **Short Comparison to Other BEGE Encoder Types**
• MIG Basic: Standard incremental encoder for basic speed feedback in general automation tasks. • MIG Nova+: High-resolution incremental encoder for advanced motion control and superior precision. • MIG AST: Absolute encoder maintaining position data after power loss for precise positioning and sophisticated control systems.
