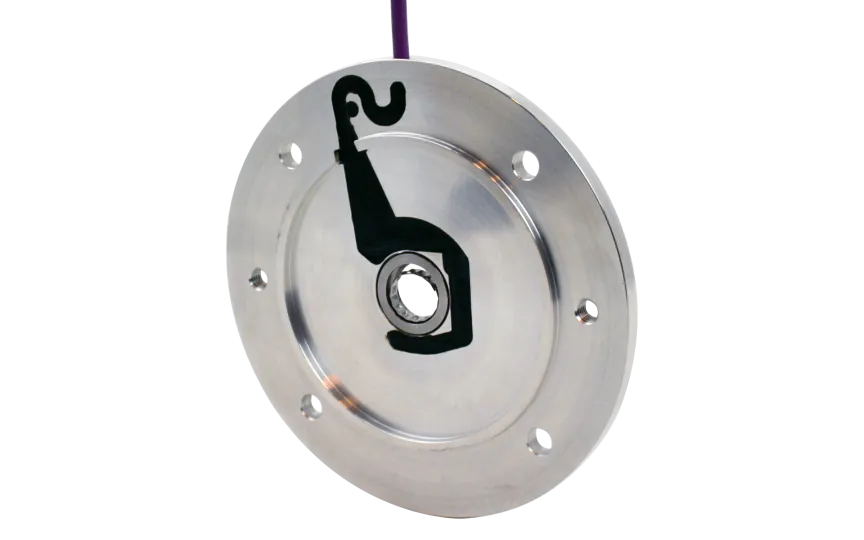

BEGE flange encoder Absolut MIG AST-120-19-S018-7, SSI 18 BIT, 5m cable, aluminium
HV53A12019S01807005The MIG AST-120-19-S018-7 is an absolute single-turn encoder designed for advanced positioning tasks where position data is retained even after power loss. Key attributes are: IEC norm: 80B14, flange diameter: 120mm, BCD: 100mm, shaft diameter: 19mm, flange thickness: 7mm, material: aluminium, and cable length: 5 meters. The encoder supports SSI output and 18-bit resolution for high positional detail. Rated for IP55/IP67 protection and operates with input voltage: 5–24VDC. Suitable for use in precise positioning and demanding control systems.
Specifications
Product description
Downloads
€537.00
Expected shipment:
Loading...
Estimated Shipping:
Estimate Shipping and Tax
Loading shipping methods...
Shipping Methods
No shipping methods available for this destination.
More Information
IP classification
IP55 / IP67
Outer diameter (mm)
120
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
5
Shaft diameter (mm)
19
IEC norm
80B14
BCD norm
100
HS-Code
90292038.000000
Encoder supply
5-24VDC
Encoder signals
SSI
Pulses
18 BIT
Description
BEGE Power Transmission is a renowned manufacturer specializing in robust, high-precision encoders and automation components engineered for demanding industrial environments. Their products are designed for reliability, accuracy, and seamless integration in advanced automation systems.**Product: BEGE Flanged Encoder Absolute MIG AST-120-19-S018-7, SSI 18 BIT, 5m Cable, Aluminium**
Absolute encoder with precise single-turn position feedback, retaining exact position data even after power loss, ensuring uninterrupted process integrity for advanced automation and motion control systems.
Features a strong aluminium housing and robust IP55/IP67 protection, making it ideal for harsh industrial applications where dust, moisture, or vibration can be present.
Equipped with 18-bit resolution (SSI output), providing exceptional accuracy for critical positioning tasks in robotics, packaging, and CNC machinery.
Large Ø120mm flange with 100mm BCD and 19mm solid shaft for compatibility with IEC 80B14 motors, enabling easy integration into existing motor and gearbox assemblies.
5-meter shielded cable allows flexible installation and signal integrity in environments with significant electrical noise.
Utilizes single-turn absolute measurement, eliminating the need for re-homing or reference runs after system downtime or power cycles.
Wide input voltage range (5–24VDC) ensures stable operation across various industrial control systems.
High IP55/IP67 rating ensures reliable operation in both dusty workshop floors and environments exposed to splashes or intermittent water jets.
Specifically suited for applications requiring precise positioning and repeatable accuracy, such as automated warehouses, material handling systems, printing machinery, and multi-axis drives.
Other BEGE encoder types:
MIG Basic: Incremental encoder for essential speed feedback in standard automation tasks.
MIG Nova+: Incremental encoder with enhanced resolution and signal stability for more precise control in automated systems.
MIG AST: Absolute encoder ideal for advanced control systems requiring position retention and pinpoint repeatability after power loss.
