Description

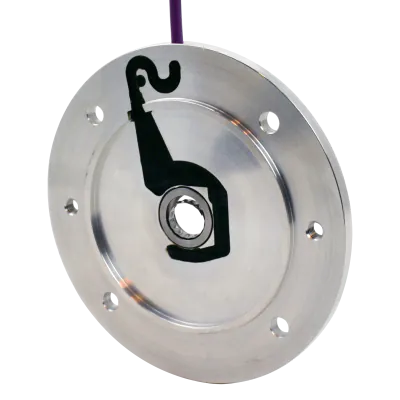

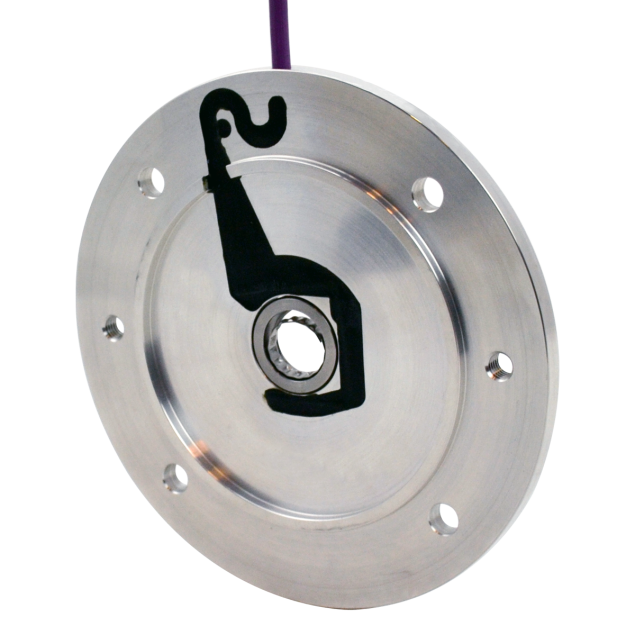

BEGE Power Transmission is a renowned manufacturer specializing in high-quality industrial automation components, with a strong focus on innovative, reliable encoders tailored for demanding engineering environments.Product Name: BEGE Flanged Absolute Encoder MIG AST-120-19-S018-7, SSI 18 BIT, 20m cable, aluminiumKey Features and Benefits:
• Absolute single-turn encoder with SSI output ensures precise position feedback and retains positional data even after power loss, supporting advanced motion control systems and high-end automation processes.• 18 BIT resolution delivers exceptional accuracy for detailed position sensing in robotics, conveyor systems, and precision assembly lines.• Robust aluminium housing provides excellent durability and lightweight protection, suitable for industrial environments with mechanical stresses.• IP55/IP67 rating offers outstanding resistance to dust and water, enabling reliable operation in challenging or harsh settings such as food processing or outdoor installations.• Generous 20-meter cable length simplifies integration in large machines or extended installations, reducing the need for additional connectors.• Compatible with IEC 80B14 motors using a 120 mm outside diameter and 7 mm thick flange, supporting fast and secure direct mounting in standardized automation assemblies.• 19 mm solid shaft assures strong mechanical coupling and compatibility with a wide range of motor and drive systems.• Standard BCD 100 mm flange interface ensures easy retrofit and interchangeability with existing equipment in the field.• Wide input voltage range (5–24 VDC) enables flexible use in diverse industrial automation landscapes.Application Opportunities:
• Advanced industrial machinery requiring continuous absolute position feedback for safety and synchronization, such as in packaging, printing, and high-speed sorting lines.• Motion control systems for CNC machines, handling equipment, and robotic arms, where precision and reliability are critical.• Automated process lines needing position retention after power interruptions to ensure stable system recovery and workflow continuity.• Any application demanding highly robust, resilient encoders for outdoor or washdown conditions.
• Absolute single-turn encoder with SSI output ensures precise position feedback and retains positional data even after power loss, supporting advanced motion control systems and high-end automation processes.• 18 BIT resolution delivers exceptional accuracy for detailed position sensing in robotics, conveyor systems, and precision assembly lines.• Robust aluminium housing provides excellent durability and lightweight protection, suitable for industrial environments with mechanical stresses.• IP55/IP67 rating offers outstanding resistance to dust and water, enabling reliable operation in challenging or harsh settings such as food processing or outdoor installations.• Generous 20-meter cable length simplifies integration in large machines or extended installations, reducing the need for additional connectors.• Compatible with IEC 80B14 motors using a 120 mm outside diameter and 7 mm thick flange, supporting fast and secure direct mounting in standardized automation assemblies.• 19 mm solid shaft assures strong mechanical coupling and compatibility with a wide range of motor and drive systems.• Standard BCD 100 mm flange interface ensures easy retrofit and interchangeability with existing equipment in the field.• Wide input voltage range (5–24 VDC) enables flexible use in diverse industrial automation landscapes.Application Opportunities:
• Advanced industrial machinery requiring continuous absolute position feedback for safety and synchronization, such as in packaging, printing, and high-speed sorting lines.• Motion control systems for CNC machines, handling equipment, and robotic arms, where precision and reliability are critical.• Automated process lines needing position retention after power interruptions to ensure stable system recovery and workflow continuity.• Any application demanding highly robust, resilient encoders for outdoor or washdown conditions.
Specifications
IP classification
IP55 / IP67
Outer diameter (mm)
120
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
20
Shaft diameter (mm)
19
IEC norm
80B14
BCD norm
100
Encoder supply
5-24VDC
Encoder signals
SSI
Pulses
18 BIT
Downloads
Foreign trade
HS-Code
90292038
ERP net weight (Kg)
0.98
Country of origin
NLD
