Description
BEGE Power Transmission is a renowned manufacturer of drive components and automation solutions for industrial applications. With a legacy of innovation and reliability, BEGE encoders deliver precision, robust construction, and dependable performance for demanding environments.**Product Name:**

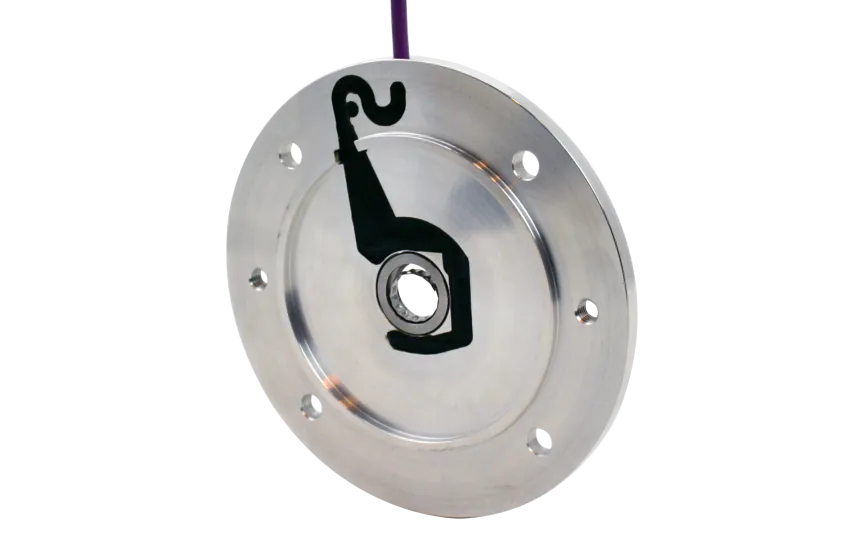

BEGE Flanged Encoder Absolute MIG AST-120-09-S018-7, SSI 18 BIT, 2m Cable, Aluminium**Key Features, Benefits, and Application Possibilities:**
• High-Precision Absolute Encoding: Provides exact position values that are retained even after power loss – essential for advanced control systems, robotics, and safety-critical applications in automation and manufacturing.• 18-bit Resolution Single-Turn: Offers extremely fine position detection for improved production accuracy, smoother machine motion, and increased system reliability in assembly lines, packaging machines, and CNC equipment.• Robust Output Signal (SSI): Synchronous Serial Interface (SSI) enables fast, interference-resistant data transmission for integration into modern PLCs and distributed control systems.• Durable Aluminium Construction: Built with industrial-grade aluminium housing for excellent resistance against mechanical stress, vibrations, and harsh environments in processing and production plants.• Versatile Mounting: Flange diameter Ø120mm with BCD 100mm and 7mm thickness supports straightforward installation on IEC 56B5 motors and compatible drive units used in conveyors, actuators, and process automation.• Shaft Specification: 9mm diameter shaft designed for secure coupling with a range of industrial motor types to ensure stable signal transmission during operation.• Wide Power Supply Range: Accepts 5–24VDC input, ensuring flexible use with various automation hardware.• High IP Ratings: IP55/IP67-certified for superior protection against dust and water, making the encoder suitable for both clean and challenging industrial environments such as food processing, material handling, and outdoor applications.• 2-Meter Cable Length: Provides installation flexibility even at motor-to-control panel distances, reducing the need for additional cabling and connectors.**Encoder Range Overview:**
• MIG Basic: Incremental encoder for fundamental speed feedback in standard automation, ideal for cost-effective, basic motor control tasks.• MIG Nova+: Incremental encoder with higher resolution and improved signal stability for more precise regulation in complex automated systems.• MIG AST: Absolute encoder preserving position after power-down for high-precision positioning and advanced motion control in sophisticated systems.
BEGE Flanged Encoder Absolute MIG AST-120-09-S018-7, SSI 18 BIT, 2m Cable, Aluminium**Key Features, Benefits, and Application Possibilities:**
• High-Precision Absolute Encoding: Provides exact position values that are retained even after power loss – essential for advanced control systems, robotics, and safety-critical applications in automation and manufacturing.• 18-bit Resolution Single-Turn: Offers extremely fine position detection for improved production accuracy, smoother machine motion, and increased system reliability in assembly lines, packaging machines, and CNC equipment.• Robust Output Signal (SSI): Synchronous Serial Interface (SSI) enables fast, interference-resistant data transmission for integration into modern PLCs and distributed control systems.• Durable Aluminium Construction: Built with industrial-grade aluminium housing for excellent resistance against mechanical stress, vibrations, and harsh environments in processing and production plants.• Versatile Mounting: Flange diameter Ø120mm with BCD 100mm and 7mm thickness supports straightforward installation on IEC 56B5 motors and compatible drive units used in conveyors, actuators, and process automation.• Shaft Specification: 9mm diameter shaft designed for secure coupling with a range of industrial motor types to ensure stable signal transmission during operation.• Wide Power Supply Range: Accepts 5–24VDC input, ensuring flexible use with various automation hardware.• High IP Ratings: IP55/IP67-certified for superior protection against dust and water, making the encoder suitable for both clean and challenging industrial environments such as food processing, material handling, and outdoor applications.• 2-Meter Cable Length: Provides installation flexibility even at motor-to-control panel distances, reducing the need for additional cabling and connectors.**Encoder Range Overview:**
• MIG Basic: Incremental encoder for fundamental speed feedback in standard automation, ideal for cost-effective, basic motor control tasks.• MIG Nova+: Incremental encoder with higher resolution and improved signal stability for more precise regulation in complex automated systems.• MIG AST: Absolute encoder preserving position after power-down for high-precision positioning and advanced motion control in sophisticated systems.
Specifications
IP classification
IP55 / IP67
Outer diameter (mm)
120
Flange thickness (mm)
7
Encoder Material
Aluminium
Cable length (m)
2
Shaft diameter (mm)
9
IEC norm
56B5
BCD norm
100
Encoder supply
5-24VDC
Encoder signals
SSI
Pulses
18 BIT
Downloads
Foreign trade
HS-Code
90292038
ERP net weight (Kg)
0.37
Country of origin
NLD
